| Model |
CE1640D |
CE1660D |
CE1840D |
CE1840D/B |
|
CE1860D |
CE1860D/B |
| Max. swing over bed |
410mm |
458mm |
| Max. swing over cross slide |
240mm |
288mm |
| Max. swing over gap |
595mm |
640mm |
| Length of gap |
155mm |
| Spindle hole |
Ф 52mm, DB series: Ф 77mm |
| Spindle speed |
32-2000rpm(12steps), DB series:24-1600rpm(12steps) |
| Metric thread range |
53kinds, 0.4-14mm |
| Inch thread range |
40kinds, 2-56TPI |
| Module thread range |
44kinds, 0.4-7MP |
| Diametrical pitch range |
32kinds, 4-56DP |
| Max. travel of upper toolpost |
120mm |
| Max. travel of lower toolpost |
230mm |
| Center distance |
750/1000/1500mm |
| Main drive motor |
4kw, 3PH 3kw/4.5kw |
| Overall dimension(LxWxH) |
2000/2250/2750x980x1210mm |
| Net weight (kg) |
1450/1750/2000 | |
| |
 |

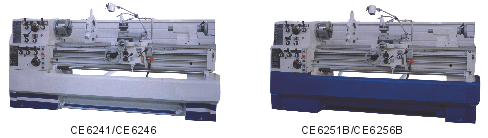

| Model |
CE6241 |
CE6246 |
CE6251B |
CE6256B |
| Max.swing over bed |
410mm |
460mm |
510mm |
560mm |
| Max.swing over cross slide |
224mm |
274mm |
300mm |
350mm |
| Max.swing over gap |
640mm |
690mm |
738mm |
788mm |
| Length of gap |
155mm |
350mm |
| Spindle hole & taper |
58mm, MT6 |
80mm, MT7 |
| Spindle speed |
25-2000rpm, 12steps |
25-1600rpm, 12steps |
| Metric thread range |
41kinds, 0.1-14mm |
47kinds, 0.2-14mm |
| Inch thread range |
60kinds, 2-112TPI |
60kinds, 2-112TPI |
| Module thread range |
34kinds, 0.1-7MP |
39kinds, 0.1-7MP |
| Diametrical pitches range |
50kinds, 4-112DP |
50kinds, 4-112DP |
| Longitudinal feed range |
42kinds, 0.031-1.7mm/rev |
0.059-1.646mm/rev |
| Cross feed range |
42kinds, 0.014-.784mm |
0.020-0.573mm/rev |
| Cross slide travel |
290mm |
326mm |
| Compound rest travel |
120mm |
130mm |
| Center distance |
1000/1500mm |
1500/2000mm |
| Main drive motor |
4kw, optional 5.5kw, 3PH |
7.5kw(10HP) ,3 PH |
Overalldimension
(LxWxH)(mm) |
2170/2720x1040x1370 |
290/340x1120x1430 |
290/340x1120x1460 |
| Net weight (kg) |
1670/1970 |
1720/2020 |
2335/2685 |
2370/2720 | |
| |
 |

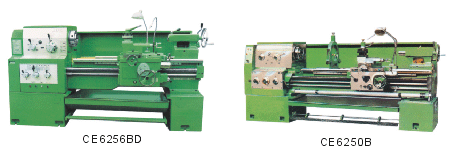

| Model |
CE6245BD |
CE6256BD |
CE6266BD |
| Max.swing over bed |
450mm |
560mm |
660mm |
| Max.swing over cross slide |
220mm |
330mm |
430mm |
| Max.swing over gap |
700mm |
810mm |
910mm |
| Length of gap |
250mm |
250mm |
250mm |
| Spindle hole & taper |
82mm |
| Spindle speed |
16-1600rpm,16steps |
| Metric thread range |
0.5-120mm |
| Inch thread range |
80-7/16tpi |
| Module thread range |
0.25-60mm |
| Diametrical thread range |
160-7/8DP |
| Longitudinal feed range |
0.054-2.842mm/rev |
| Cross feed range |
0.015-0.804mm/rev |
| Cross slide travel |
348mm |
| Compound rest travel |
|
| Center distance |
750/1000/1500/2000/3000mm |
| Main drive motor |
7.5kw |
| Overall dimension(LxWxH) |
Wooden box: 2630/2880/3380/388/4880x1480x1890mm |
| Net weight (Ton) |
2.15/2.2/2.25 /2.36/2.56 |
2.2/2.25/2.3 /2.41/2.61 |
2.25/2.3 /2.35/2.46/2.66 | |
| |
 |

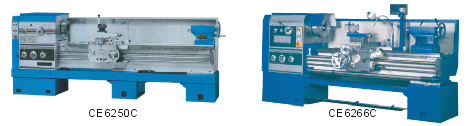

| Model |
CE6240 |
CE6250 |
CE6250B |
CE6250C |
CE6266B |
CE6266C |
| Max.swing over bed |
400mm |
500mm |
660mm |
| Max.swing over cross slide |
220mm |
300mm |
420mm |
| Max.swing over gap |
630mm |
710mm |
870mm |
| Length of gap |
240mm |
240mm |
| Spindle hole & taper |
Ф 52mm |
Ф 82mm |
Ф 105mm |
Ф 82mm |
Ф 105mm |
| Spindle speed |
9-1600rpm,24steps |
36-1600rpm,
12steps |
9-1600rpm,
24steps |
36-1600rpm,
12steps |
| Metric thread range |
0.5-224mm,48kinds |
1-14mm,
22kinds |
0.5-224mm,
48kinds |
1-14mm,
22kinds |
| Inch thread range |
72-1/8TPI,49kinds |
28-2TPI,
25kinds |
72-1/8 TPI i,
49kinds |
28-2 TPI i,
25kinds |
| Module thread range |
0.5-112mm,42kinds |
0.5-7mm,
18kinds |
0.5-122mm,
42kinds |
0.5-7mm,
18kinds |
| Diametrical pitch range |
56-1/4DP,42kinds |
56-4DP,
24kinds |
56-1/4DP,
45kinds |
56-4DP,
24kinds |
| Longitudinal feed range |
0.028-6.43mm/r,93kinds |
0.063-2.52mm/rev 65kinds |
0.028-6.43mm/rev,
93kinds |
0.063-2.52mm/rev, 65kinds |
| Cross feed range |
0.012-2.73mm/r,93kinds |
0.027-1.07mm/rev,
65kinds |
0.012-2.37mm/rev,
93kinds |
0.027-1.07mm/rev,
65kinds |
| Cross slide travel |
320mm |
310mm |
| Compound rest travel |
145mm |
145mm |
| Center distance |
750/1000/1500/2000/3000mm |
1000/1500/2000/3000mm |
| Main drive motor |
7.5kw |
7.5kw |
| Overall dimension(LxWxH)(mm) |
2382/2632/3132/3632/ 4632x975x1230 |
2630/3130/3630/4630 x1050x1350 | |
| |
 |

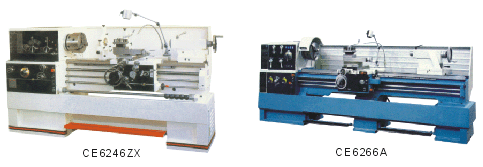

| Model |
CE6240ZX |
CE6246ZX |
| Max.swing over bed |
410mm |
460mm |
| Max.swing over cross slide |
250mm |
290mm |
| Max.swing over gap |
660mm |
700mm |
| Length of gap |
200mm |
| Spindle hole & taper |
80mm |
| Spindle speed |
42~1800/25-1800rpm |
| Metric thread range |
0.5~20mm/24kinds |
| Inch thread range |
72~1-5/8tpi/61kinds |
| Module thread range |
0.25~10mm/20kinds |
| Diametrical thread range |
96~3-1/4DP/45kinds |
| Longitudinal feed range |
0.04~2.46mm |
| Cross feed range |
0.02~1.23mm |
| Cross slide travel |
230mm |
| Compound rest travel |
100mm |
| Center distance |
1000/1500mm |
1000/1500/2000mm |
| Main drive motor |
5.5kw |
Overall dimension
(LxWxH)(mm) |
2310/2810x1000x1275 |
2310/2810/3320x1000x1295 |
| Net weight (kg) |
2485,2630 |
2635,2835,3055 | |
| |
 |

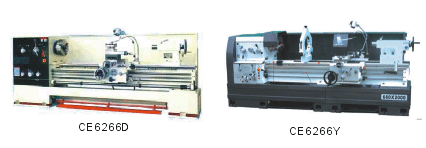

| Model |
CE6266A |
CE6266D |
CE6266Y |
| Max. swing over bed |
660mm |
660mm |
660mm |
| Max. swing over cross slide |
440mm |
420mm |
435mm |
| Max. swing in gap |
900mm |
870mm |
860mm |
| Distance between centers |
1000mm/1500mm/2000/3000mm |
| Spindle bore |
105mm |
105mm |
103mm |
| Taper of Spindle bore |
113mm(1:20)/MT5 |
113mm(1:20) |
|
| Range of spindle speed |
26-1700rpm |
36-1600rpm |
9-1275/16-816rpm |
| Range of longitudinal feeds |
0.022-0.74mm/rev(25kinds) |
0.028-6.43mm |
0.073-4.066mm/rev |
| Range of cross feeds |
0.044-1.48mm/rev(25kinds) |
0.012-2.73mm |
0.036-2.033mm/rev |
| Range of metric threads |
0.45-120mm(54kinds) |
1-14mm/ 22 |
0.5-112mm |
| Range of inch threads |
7/16-80T.P.I.(54kinds) |
28-2 t.p.i/ 25 |
56-1/4t/inch |
| Diametrical pitches range |
7/8-160DP(42kinds) |
56-4 D.P/ 24 |
56-4Dp |
| Module pitches range |
0.25-60MP(46kinds) |
0.5-7mm/ 18 |
0.5-7mm |
| Max size of tool shank |
25x25mm |
25x25mm |
|
| Taper of tailstock bore |
MT5 |
MT5 |
MT6 |
| Power of motor |
7.5KW |
7.5KW |
7.5/10KW | |
| |
 |
| Model |
CE6280B |
CE6280C |
| Max.swing over bed |
800mm |
| Max.swing over cross slide |
560mm |
| Max.swing over gap |
1000mm |
| Length of gap |
240mm |
| Spindle hole & taper |
9-1400rpm,24steps |
Ф105mm |
| Spindle speed |
Length of gap |
30-1400rpm,12steps |
| Metric thread range |
0.5-224mm,48kinds |
1-14mm,22kinds |
| Inch thread range |
72-1/8tpi,49kinds |
20-2tpi,25kinds |
| Module thread range |
0.5-122MP,42kinds |
0.5-7mm,18kinds |
| Diametrical thread range |
56-1/4DP,45kinds |
56-4DP,24kinds |
| Longitudinal feed range |
93kinds,0.028-6.43mm/rev |
0.063-2.52mm/rev,65kinds |
| Cross feed range |
93kinsd,0.012-2.37mm/rev |
0.027-1.07mm/rev,65kinds |
| Cross slide travel |
320mm |
| Compound rest travel |
145mm |
| Center distance |
1000/1500/2000/3000mm |
| Main drive motor |
7.5kw |
| Overall dimension(LxWxH) |
2370/2870/3370/4370x1340x1490mm |
| Net weight (kg) |
2900/3100/3300/3700 | |
| |
 |

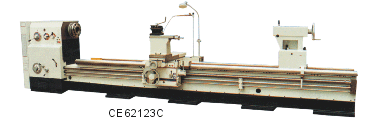

| Specification |
CE62123C |
CE62143C |
CE62163C |
CE62183C |
| Max sewing over bed(mm) |
1230 |
1430 |
1630 |
1830 |
| Max sewing over cross slide |
900mm |
1100mm |
1200mm |
1400mm |
| Max sewing over gap |
1400mm |
1600mm |
1800mm |
2000mm |
| Valid lengthin gap |
380mm |
| Width of bed |
610mm |
| Max capacity of worktable |
2t |
| Spindle hole & taper |
105(130)mm |
| Spindle speeds |
10-800rpm
/18steps |
10-610rpm
/17steps |
6-480rpm/18steps |
| Cross slide travel |
615mm |
715mm |
815mm |
915mm |
| Center distance |
1.5, 2, 3, 4.5, 6 m |
| Metric thread range |
1-240mm/53kinds |
| Module thread range |
0.25-60mm/47kinds |
| Diametrical thread range |
60-1/2tpi/47kinds |
| Longitudinal feeds |
0.07-16.72mm/r |
| Cross feeds |
0.04-9.6mm/r |
| Main drive motor |
11 or 7.5 kw |
11 kw |
| Packing size(mm) |
Length |
3840/ 4340/5170/6670/ 8290 |
| Width |
1700/2000 |
1850 |
2000 |
2200 |
| Height |
2080 |
2220 |
2240 |
2380 |
| Gross weight(Ton) |
6.5/6.85
/7.5/8.6/9.6 |
7.2/7.4
/8.1/9/10 |
7.8/8.2
/8.9/9.8/10.5 |
8.6/9
/9.7/10.6/11.2 | |
| | |
 |
| |
|
| |
|
|
