Specifications M6226A M6226B
Max. horizontal milling dia 125mm 125mm
Max. vertical milling dia 25mm 25mm
Distance spindle to table surface 100-500mm 100-480mm
Spindle speeds range 40-1660r.p.m 45-1660r.p.m
Swivel angle of swivel head 360° 360°
Table size 1120x260mm 1120x260mm
Table travel 600x270mm 600x270mm
Overall dimensions 1655x1500x1730mm 1655X1500X1730mm
Motor 2.2Kw 2.2Kw
Net weight/gross weight 1480/1660Kg 1480/1680Kg

Specification M6230

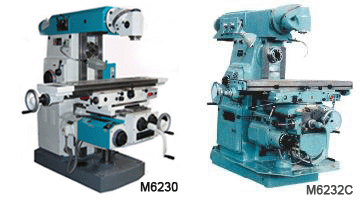

M6230/L		 M6232C M6232CX16
Working surface 300x1100mm
 320x1320mm 320x1600mm
T-slots(no.-width x pitch) 3/14/80mm 3-18x70mm
Table travel (manual)X/Y/Z 700/270/400mm
700/270/375mm		 700/255/320mm 800/255/320mm
Table travel (Power)X/Y/Z 680/250/390mm
680/250/365mm		 680/240/300mm 780/240/300mm
Spindle speed range Horizontal 32-1600rpm 30-1500rpm
Vertical head 38-1600rpm 125-2000rpm 125-2000rpm
Range of table feeds Longitudinal 15-1200mm/min 23.5-1180mm/min
Cross 15-1200mm/min 23.5-1180mm/min
vertical 5-400mm/min 8-394mm/min
Distance from center line of horizontal spindle to table surface

30-350mm
Distance from vertical spindle nose to table surface

250-570mm 250-570mm
Spindle motor power Horizontal 4kw 5.5kw
Vertical head 2.2kw 3kw
Feed motor power 1.1kw 1.5kw
Overall dimensions(LxWxH) （mm） 2225x1670x1697 2294x1770x1850 2294x2045x1858

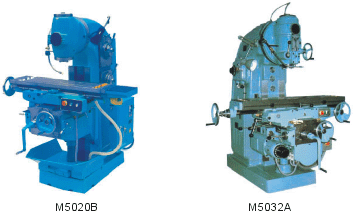

Specifications M5020B/M5025B M5020C/MQ5025C M5032A
Working surface(mm) 200X900/250x900 200X900/250x900 320x1400
T-slots(No.-width x pitch)(mm) 3-14x45/60 3-14x45/60 3-18x80
Travel of table
(mm)		 Longitudinal 500 500 900
Cross 190 190 335
Vertical 360 360 450
Vertical milling head swivel degree ± 45° ± 45° ± 45°
Spindle hole taper ISO40 ISO40 ISO50
Spindle speed range(rpm) 60-1650(8 steps) 125-2500(8 steps) 35-1830 (18 Steps)
Rapid feed
(mm/min)		 Longitudinal 2700 2700 2350
Cross 1800 1800 2350
Vertical 1000 1000 915
Net weight(kg) 1000 1000 4200
Main motor power(kw) 3 3 1.5
Overall dimensions(mm) 1700x1300x1650 1700x1300x1650 2360x2115x2067
