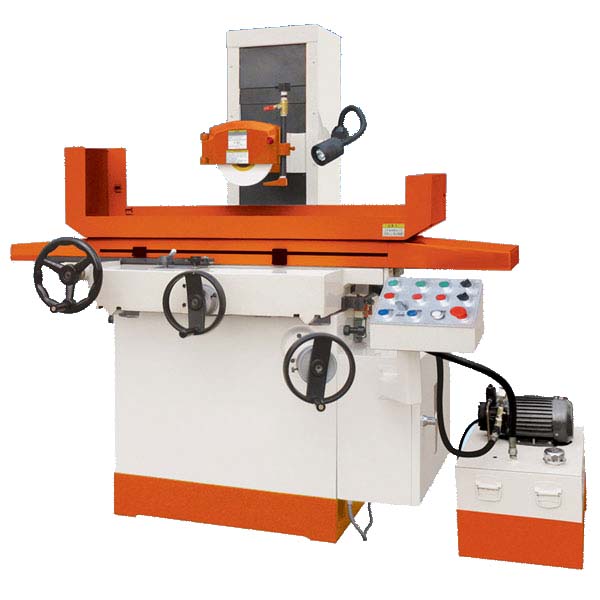

Precision Surface Grinding machine PSG2550 series
Features:
-Japan made P4 precision spindle ball bearings are adopted for easy maintenance.
-Longitudinal and cross Turcite-coated guide ways guarantee flexible operation.
-Longitudinal travel of the working table use hydraulic or manual driving, One guide way is “V”, the other one is flat way.
-Cross travel use electromotion or manual motion driving, the guide way is double “V”.
-Logical controller that use programme controller combined with transducer to realize the machine auto feed, stepless and lubricate system offer oil periodicity.
-Auto feed realizing export contactless can be fit to feed and change direction ftezuently when manufacturing smaller workpiece with high dependability.
-Magnetizing and demagnetization controller realizing export contactless can be fit to magnetizing and diamagnetic frequently, the time of demagnetization is short, avoid pulling and transfiguration of the electromagnetism chuck and workpiece.
| Model |
PSG2550 |
PSG2550H |
PSG-2550A |
| Workable size(LxW)(mm) |
500x250 |
500x250 |
500x250 |
| Longitudinal travel of worktable(mm) |
600 |
600 |
600 |
| Transverse travel of worktable(mm) |
290 |
290 |
290 |
| Max. distance from spindle axis to worktable surface(mm) |
465 |
465 |
465 |
| Max. load of worktable(kg) |
200 |
200 |
200 |
| T slot of worktable(mm/no.) |
14x1 |
14x1 |
14x1 |
| Movement speed of worktable(m/min.) |
5-25 |
5-25 |
5-25 |
| Transeverse auto feed of worktable(mm) |
0.1-6.5 |
|
0.1-6.5 |
| Transeverse rapid movement(mm/min.) |
780 |
|
780 |
| Transverse feed of hand wheel/1 gra.(mm) |
0.02 |
0.02 |
0.02 |
| Transverse feed of hand wheel/1 rev.(mm) |
4 |
4 |
4 |
| Rotating speed of grinding wheel(r/min.) |
2850 |
2850 |
2850 |
| Grinding wheel size(mm) |
200x20x31.75 |
200x20x31.75 |
200x20x31.75 |
| Spindle motor(kw) |
1.5 |
1.5 |
1.5 |
| Hydraulic motor of worktable movement(kw) |
0.75 |
0.75 |
0.75 |
| Auto motor of transverse movement(nu) |
6 |
6 |
6 |
| Coolant pump(w) |
40 |
40 |
40 |
| Flatness of workpiece(mm) |
≤0.005 |
≤0.005 |
≤0.005 |
| Roughness of workpiece(um) |
≤Ra0.63 |
≤Ra0.63 |
≤Ra0.63 |
| Overall size(L*W*H)(mm) |
1650x1300x1785 |
1650x1300x1785 |
1650x1300x1785 |
| Packing size(L*W*H)(mm) |
2050x1300x1980 |
2050x1300x1980 |
2050x1300x1980 |
| N.W./G.W.(kg) |
1300/1500 |
1300/1500 |
1300/1500 | Remarks:
Dimension of chuck is 250x500mm;
TH-M2550 Cross and longitudinal movement is automatic;
TH-M2550H Logitudinal movement is automatic;
TH-M2550A Cross and longitudinal movement is automatic,cross movement is controlled by digital reader.

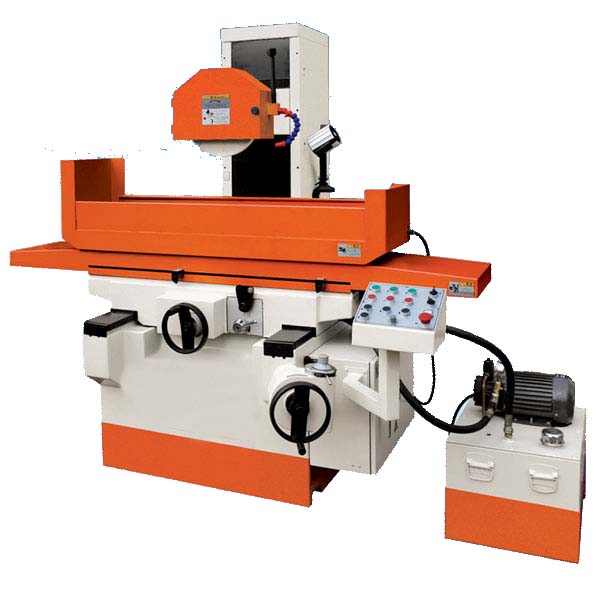

Precision Surface Grinding machine PSG3270 series
Features:
-The vertical post of the machine is attached to the guide way, the balanced moving of the grinding wheel offer the fine precision of the machine.
-The guide way of cross travel is double “V”. A guide way of longitudinal travel is “V”, the other one is flat. The friction is small..
-Longitudinal, cross travel and spindle feed use hydraulic or manual driving.
-Spindle feel use microfeed set, the feed precision is up to 0.002mm.
-Japan made P4 precision spindle ball bearings are adopted for easy maintenance. The roughness of surface is smaller than Ra0.63.
-Logical controller that use programme controller combined with transducer to realize the machine auto feed, stepless and lubricate system offer oil periodicity.
-Auto feed realizing export contactless can be fit to feed and change direction frequently when manufacturing smaller workpiece with high dependability.
-Magnetizing and demagnetization controller realizing export contactless can be fit magnetizing and damagnetic frequently, the tie of demagnetization is short, avoid pulling and transfiguration of the electromagnetism chuck and workpiece.
| Model |
PSG3270 |
PSG3270H |
PSG-3270A |
| Workable size(LxW)(mm) |
700x320 |
700x320 |
700x320 |
| Longitudinal travel of worktable(mm) |
800 |
800 |
800 |
| Transverse travel of worktable(mm) |
360 |
360 |
360 |
| Max. distance from spindle axis to worktable surface(mm) |
650 |
650 |
650 |
| Max. load of worktable(kg) |
300 |
300 |
300 |
| T slot of worktable(mm/no.) |
18x1 |
18x1 |
18x1 |
| Movement speed of worktable(m/min.) |
5-25 |
5-25 |
5-25 |
| Transeverse auto feed of worktable(mm) |
0.1-20 |
|
0.1-20 |
| Transeverse rapid movement(mm/min.) |
780 |
|
780 |
| Transverse feed of hand wheel/1 gra.(mm) |
0.02 |
0.02 |
0.02 |
| Transverse feed of hand wheel/1 rev.(mm) |
4 |
4 |
4 |
| Spindie radpid vertical feed |
1500 |
1500 |
1500 |
| Spindle wheel feed(mm/gra.) |
0.01 |
0.01 |
0.01 |
| Spindle wheel feed(mm/rev.) |
0.03 |
0.03 |
0.03 |
| Rotating speed of grinding wheel(r/min) |
1440 |
1440 |
1440 |
| Grinding wheel size(mm) |
355x30x127 |
355x30x127 |
355x30x127 |
| Spindle motor(kw) |
4 |
4 |
4 |
| Hydraulic motor of worktable movement(kw) |
1.5 |
1.5 |
1.5 |
| Auto motor of transverse movement(nu) |
8 |
8 |
8 |
| Coolant pump(w) |
40 |
40 |
40 |
| Flatness of workpiece(mm) |
≤0.005 |
≤0.005 |
≤0.005 |
| Roughness of workpiece(um) |
≤Ra0.63 |
≤Ra0.63 |
≤Ra0.63 |
| Overall size(L*W*H)(mm) |
2160x1600x1950 |
2160x1600x1950 |
2160x1600x1950 |
| Packing size(L*W*H)(mm) |
2290x1700x2220 |
2290x1700x2220 |
2290x1700x2202 |
| N.W./G.W.(kg) |
2000/2300 |
2000/2300 |
2000/2300 | Remarks:
-Dimension of chuck is 300x680mm;
-PSG3270 Cross and longitudinal movement is automatic;
-PSG3270H Logitudinal movement is automatic;
-PSG3270A Cross and longitudinal movement is automatic,cross movement is controlled by digital reader.

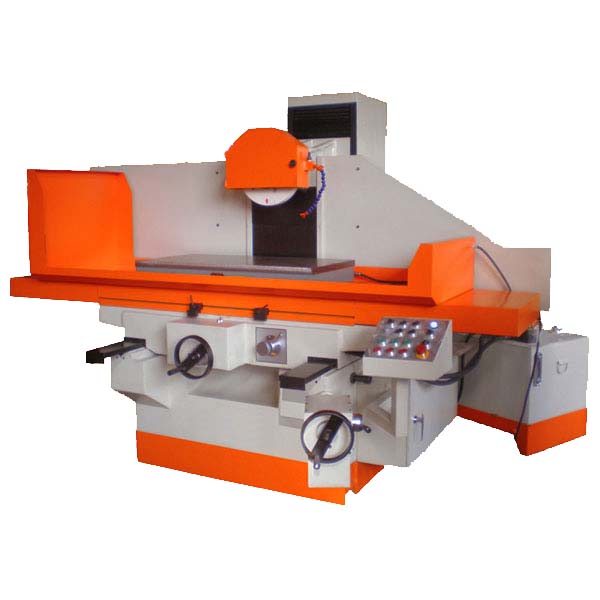

Precision Surface Grinding machine PSG50100
Features:
-Column and guide rail of this machine are integrated, grinding head is steady and processing precision is high. This machine adopts concealed structure of grinding head motor; the configuration is elegant and natural.
-Transverse movement adopts double V type; longitudinal is a assembly of one V type and one parallel guide rail, which has well guiding quality, little friction force, flexible movement. This kind of structure has higher steadiness and precision retentivity.
-Longitudinal movement of worktable of machine adopts hydraulic nonpolar transmission and also can be transmitted by hand wheel. Transverse movement of worktable not only can be transmitted by motor, but also by hand wheel (use clutch gear to realize the interlocking of manual and power). Elevation and ascendance of wheel are controlled by hand wheel. Productivity efficiency is high.
-Spindle adopts Japanese P4-grade precision bearing which processes high turning precision, steady running, low noise and high processing surface quality, the surface roughness is less than Ra0.63.
-Transverse logical control adopts programmable controller to realize transverse automatic feed of machine by combining with stepping motor.
-Automatic and periodic oil supply of lubricating system.
-Automatic feed realizes non-contact output and can suitable fort frequent feed and inverting of small work piece. Reliability is high
-Magnetizing and demagnetizing controller realizes non-contact output and able to suit for frequent magnetization and demagnetization within very short time as to avoid damaging and distorting the electromagnetic chuck or work piece, and ensuring the precision of work piece.
| Model |
PSG50100 |
| Workable size(LxW)(mm) |
1000x500 |
| Longitudinal travel of worktable(mm) |
1080 |
| Transverse travel of worktable(mm) |
540 |
| Max. distance from spindle axis to worktable surface(mm) |
630 |
| Max. load of worktable(kg) |
700 |
| T slot of worktable(mm/no.) |
18x3 |
| Movement speed of worktable(m/min.) |
0-30 |
| Transeverse auto feed of worktable(mm) |
0.02 |
| Transeverse rapid movement(mm/min.) |
780 |
| Transverse feed of hand wheel/1 gra.(mm) |
0.02 |
| Transverse feed of hand wheel/1 rev.(mm) |
5 |
| Spindie radpid vertical feed |
1440 |
| Spindle wheel feed(mm/gra.) |
0.002 |
| Spindle wheel feed(mm/rev.) |
0.4 |
| Rotating speed of grinding wheel(r/min) |
1440 |
| Grinding wheel size(mm) |
355x30x127 |
| Spindle motor(kw) |
7.5 |
| Hydraulic motor of worktable movement(kw) |
3H-6P |
| Auto motor of transverse movement(nu) |
6 |
| Coolant pump(w) |
40 |
| Flatness of workpiece(mm) |
0.005/(300*300nm) |
| Roughness of workpiece(um) |
≤Ra0.63 |
| Overall size(L*W*H)(mm) |
2870x2220x2050 |
| Packing size(L*W*H)(mm) |
2950x2220x2150 |
| N.W./G.W.(kg) |
4000/5000 | Remarks: Dimension of chuck is 500x1000mm.
| |
|
| |
|
|
