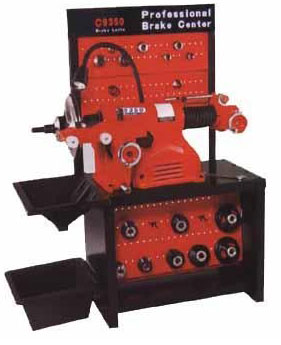

Brake Drum/Disc Lathe
Features:
-Quickly, accurately and efficiently to cutting rotor;
-Fast and slow setting allow cutting rotor;
-Quick, accurately and efficiently to cutting drum;
-Finitely adjustably setting allow cutting drum;
-Three kinds of speed to choice for spindle speed;
-Fully equipped adapter package.
-A convenient design allows to quickly change from rotor to drum;
-Position of stop make the lathe stop automatic after the cutting.
| Model |
C9350 |
C9370 |
| Spindle Travel(mm) |
175 |
251 |
| Spindle Speed(rpm) |
70, 80, 118 |
70,88,118 |
| Spindle Feed Speed(mm/rev) |
0.05-0.5 |
0.05-0.5 |
| Cross Feed Speed(mm/rev) |
0.05-0.5 |
0.05-0.25 |
| Handwheel Graduations(mm) |
0.05 |
0.05 |
| Rotor Diameter(mm) |
180-381 |
180-457 |
| Rotor Thickness(mm) |
48 |
102 |
| Drum Diameter(mm) |
152-711 |
152-711 |
| Drum Depth(mm) |
175 |
251 |
| Motor(kw) |
1PH 110V/220V 50/60HZ , 3PH 380V 50/60HZ |
| Gross Weight(kg) |
290 |
400 |
| Overall size(mm) |
970x920x1140 |
1100x1070x1140 |
|
| |
|
|
