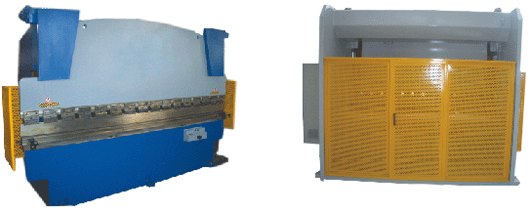

| HPB-1 SERIES HYDRAULIC PRESS BRAKE |
 |
Performance
*Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
*Hydraulic top-drive, steadiness and reliability.
*Mechanical stop, steel torsion bar to maintain synchronization, high precision.
*Motorized-adjusting device of back gauge and rams stroke, fine adjusting by hand wheel, numerical display.
*Deflection compensation unit installed on the top die. Manual crowned bottom die holder is adopted for the machine above 250tons.
*Travel limits protection. Full machine guarding with safety interlocker.
Specification
| specification |
Nominal pressure |
Length of table |
Slippery journey |
Stroke adjustment of ram |
Stroke rate |
Net weight |
Power |
External dimension |
| KN |
mm |
mm |
mm |
/min |
kg |
kw |
cm |
| 40/2000 |
400 |
2000 |
100 |
80 |
11 |
2600 |
3 |
209X127X180 |
| 50/3200 |
500 |
3200 |
100 |
80 |
11 |
3500 |
3 |
329X150X230 |
| 63/2500 |
630 |
2500 |
100 |
80 |
10 |
4500 |
5.5 |
256X173X230 |
| 63/3200 |
630 |
3200 |
100 |
80 |
10 |
5500 |
5.5 |
326X173X236 |
| 80/3200 |
800 |
3200 |
100 |
75 |
8 |
6500 |
7.5 |
328X180X240 |
| 80/4000 |
800 |
4000 |
100 |
75 |
8 |
7500 |
7.5 |
408X182X240 |
| 100/3200 |
1000 |
3200 |
120 |
100 |
8 |
8200 |
7.5 |
328X182X243 |
| 100/4000 |
1000 |
4000 |
120 |
100 |
8 |
1000 |
7.5 |
408X182X243 |
| 125/3200 |
1250 |
3200 |
120 |
100 |
8 |
8700 |
7.5 |
328X182X243 |
| 125/4000 |
1250 |
4000 |
120 |
100 |
8 |
10600 |
7.5 |
408X182X243 |
| 160/3200 |
1600 |
3200 |
200 |
160 |
8 |
10500 |
11 |
328X194X266 |
| 200/3200 |
2000 |
3200 |
200 |
160 |
7 |
14500 |
15 |
328X204X302 |
| 200/4000 |
2000 |
4000 |
200 |
160 |
7 |
17500 |
15 |
408X204 X345 |
| 300/5000 |
3000 |
5000 |
250 |
160 |
≥3 |
29 |
15 |
510X260X340 |
| 400/6000 |
4000 |
6000 |
320 |
200 |
≥2.5 |
39.5 |
30 |
610X265X390 |
| 500/6000 |
5000 |
6000 |
320 |
250 |
≥2.5 |
59 |
37 |
625X280X600 | |
|
| |
|
|
