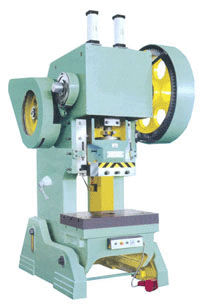

Sepcifications				J23-3.15	J23-6.3	J23-10	J23-16	J23-25
Nominal Capacity			KN	31.5	63	100	160	250
Nominal Stroke			mm	2	2	2	2	2.5
Slide Stroke			mm	25	35	45	55	65
Slide Strokes Per Minute	High Speed		min-1	200	170	145	120
Slide Strokes Per Minute	Low Speed		min-1					55
Maximum Die Set Height			mm	120	120	135	180	220
Die Height Adjustmet			mm	25	30	35	45	55
Throat Depth			mm	90	110	130	160	200
Distance Between Uprights			mm	120	150	180	220	270
Slide Bottom Size		L×R	mm	100	140	170	200	250
Slide Bottom Size		F×B	mm	90	120	150	180	220
Stemhole Size		Dia	mm	25	30	30	40	40
Stemhole Size		Depth	mm	40	55	55	60	60
Table Area		L×R	mm	250	310	370	450	560
Table Area		F×B	mm	160	200	240	300	370
Table Thickness			mm	30	30	44	40	50
Max.Angle of Inclination			。	45	45	35	35	30
Table Surface Height			mm	700	750	730	750	800
Outline Dimension		F×B	mm	670	780	900	1150	1345
		L×R		534	620	665	847	950
		H		1310	1503	1658	1910	2130
Outline Dimension		F×B	mm	450	530	610	780	920
Outline Dimension		L×R	mm	252	314	394	450	600
Motor Power			KW	0.55	0.75	1.1	1.5	2.2
Weight(Approximate)			Kg	194	400	576	1055	1780

Sepcifications				J23-35	J23-40A	JB23-63A	J23-100	J23-125
Nominal Capacity			KN	350	400	630	1000	1250
Nominal Stroke			mm	3.5	5	6	7	7
Slide Stroke			mm	100	90	110	140	150
Slide Strokes Per Minute	High Speed		min-1
Slide Strokes Per Minute	Low Speed		min-1	50	45	40	38	35
Maximum Die Set Height			mm	225	255	310	360	360
Die Height Adjustmet			mm	60	65	80	100	100
Throat Depth			mm	220	250	310	380	390
Distance Between Uprights			mm	270	340	420	560	550
Slide Bottom Size		L×R	mm	250	300	400	540	540
Slide Bottom Size		F×B	mm	220	260	360	480	480
Stemhole Size		Dia	mm	40	50	50	60	60
Stemhole Size		Depth	mm	60	70	70	75	75
Table Area		L×R	mm	610	700	860	1080	1080
Table Area		F×B	mm	380	460	570	710	710
Table Thickness			mm	65	65	80	120	120
Max.Angle of Inclination			。	30	30	20	15	13
Table Surface Height			mm	805	850	850	850	860
Outline Dimension		F×B	mm	1345	1721	1958	2404	2504
		L×R		950	1335	1500	1790	1790
		H		2180	2488	2868	3625	3715
Outline Dimension		F×B	mm	920	1060	1300	1550	1710
Outline Dimension		L×R	mm	600	750	920	1130	1110
Motor Power			KW	3	5.5	7.5	11	11
Weight(Approximate)			Kg	2040	3540	5500	9863	10500

J21 Series Open-type Fixed Table Presses

Features:

Cast frame,to ensure high rigidity and less deformation.

Turn-key and rigid clutch,with flexible movement andreliable performance.

Crankshaft placed crosswise,six-side rectangle guides of the slide with high accuracy.

Press collape block dovico,to ensure safety in press operation.

Specifications				J21-80	J21-80A	J21-125	J21-160
Nominal Capacity			KN	800	800	1250	1600
Nominal Stroke			mm	6	6	7	8
Slide Stroke			mm	120	120	150	160
Slide Strokes Per Minute			min-1	40	40	35	35
Maximum Die Set Height			mm	310	340	380	400
Die Height Adjustment			mm	80	90	100	100
Throat Depth			mm	310	320	380	380
Distance Between Uprights			mm	420	450	660	580
Slide Bottom Size		L×R	mm	400	400	540	700
Slide Bottom Size		F×B	mm	360	360	480	550
Stemhole Size		Dia	mm	50	50	60	70
Stemhole Size		Depth	mm	70	70	75	90
Table Area		L×R	mm	860	900	1100	1160
Table Area		F×B	mm	570	600	720	720
Table Thickness			mm	80	100	140	150
Table Surface Height			mm	770	800	880	880
utline Dimension	F×B		mm	1960	2240	2254	2380
	L×R			1500	1800	1790	1810
	H			2868	3050	3640	3530
Distance Between Foundations Bolts	F×B		mm	940	1020	1170	1400
Distance Between Foundations Bolts	L×R		mm	870	1020	1120	1050
Distance Between Foundation Bolts			KW	7.5	7.5	11	15
Weight(Approximate)			Kg	5700	8000	10600	13000
