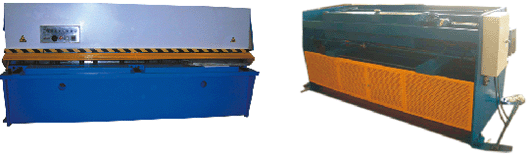

HS-1 SERIES HYDRAULIC SWING BEAM SHEAR

Performance
This machine adopts hydraulic diving and swing tool carrier. The structure is reasonable and reliable.
It is convenient to operate and maintain. The characteristic of it is that it has complete functions, mechanical back gauge manually operated timing and numerical value display structure. It also has blade clearance “Quick Set” device, installation for light beam shadow overlapping the drawn line on the plate, and counter, Stroke stepless controller raises working efficiency in shearing narrow plate. This machine is suitable for metal construction works, boiler plants, hoisting and transport machinery factories as well as shipyards to shear dividing plates or to finish crude edges of the plate materials
Specification

Specification 		Shearing thickness Shearing windth Shearing angle Number of stroke Back gauge range Motor power Net weight Overall dimension
(LXWXH)
mm mm per min. mm kw kg cm
4X2000 4 2000 1° 30 ’ 600 4 3500 2550X143X156
4 X 2500 4 2500 1° 30 ’ 600 4 4000 310X143X156
4 X 3200 4 3200 1° 30 ’ 600 5.5 5300 384X168X167
6 X 2500 6 2500 1° 30 ’ 18 20-600 7.5 6000 304X162X162
6 X 3200 6 3200 1° 30 ’ 14 20-600 7.5 7.200 384X161X162
6 X 4000 6 4000 1° 30 ’ 10 20-600 7.5 10000 464X171X170
6 X 6000 6 6000 1° 30 ’ 12 1000 11 674X250X198
8 X 2500 8 2500 1° 30 ’ 14 20-600 11 6.500 324X161X162
8 X 3200 8 3200 1° 30 ’ 10 20-600 11 7.800 401X161X162
8 X 4000 8 4000 1° 30 ’ 8 20-600 11 11000 466X171X170
10 X 2500 10 2500 1° 48 ’ 12 20-600 15 8000 335X205 X195
10 X 3200 10 3200 1° 48 ’ 10 20-600 15 1000 405X205X195
12 X 2500 12 2500 1° 30 ’ 12 10-800 18.5 11000 332X205X223
12 X 3200 12 3200 1° 30 ’ 10 10-800 18.5 12500 407X205X223
12 X 4000 12 4000 2° 8 10-800 22 16000 485X240X220
16 X 2500 16 2500 2° 30 ’ 8 10-800 18.5 15000 485X240X220
16 X 3200 16 3200 2° 30 ’ 7 10-800 22 18000 410X206X201
16 X 4000 16 4000 2° 6 10-800 30 23000 490X240X225
20 X 2500 20 2500 2° 6 10-800 37 16000 344X209X257
20 X 3200 20 3200 2° 5 10-800 37 25000 410X235X271
20 X 4000 20 4000 2° 30 ’ 4 10-800 37 30000 492X240X279

HS-1 SERIES QUILOTINE SHEAR
Performanc
This machine adopts whole steel welding structure which has finished vibration aging treatment and heat treatment to relaxing of inner stress, with well rigidity and stability.
Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality.
Clearance in between shearing blades adjusted by hand wheel to be quick, accurate and convenient. Specification

Specification 		Shearing thickness Shearing width Strokes Backgauge range Shearing angle Throat height Main power
mm mm /mm mm mm kw
6X2500 6 2500 16-35 20-600 30 ’-1° 30 ’ 800 7.5
6X3200 6 3200 14-35 20-600 30 ’-1° 30 ’ 800 7.5
6X4000 6 4000 10-30 20-600 30 ’-1° 30 ’ 800 7.5
6X5000 6 5000 10-30 20-800 30 ’-1° 30 ’ 900 11
6X6000 6 6000 8-25 20-800 30 ’-1° 30 ’ 1000 11
8X2500 8 2500 14-30 20-600 30 ’-2° 800 11
8X3200 8 3200 12-30 20-600 30 ’-2° 850 11
8X4000 8 4000 10-25 20-600 30 ’-2° 900 11
8X5000 8 5000 10-25 20-800 30 ’-2° 1000 15
8X6000 8 6000 8-20 20-800 30 ’-2° 1050 15
12X2500 12 2500 12-25 20-800 30 ’-2° 840 15
12X3200 12 3200 12-25 20-800 30 ’-2° 900 15
12X4000 12 4000 8-20 20-800 30 ’-2° 940 15
12X5000 12 5000 8-20 20-1000 30 ’-2° 1000 22
12X6000 12 6000 6-20 20-1000 30 ’-2° 1060 30
16X2500 16 2500 12-20 20-800 30 ’-1° 30 ’ 840 22
16X3200 16 3200 12-20 20-800 30 ’-1° 30 ’ 900 22
16X4000 16 4000 8-15 20-800 30 ’-1° 30 ’ 940 22
16X5000 16 5000 8-15 20-1000 30 ’-1° 30 ’ 1000 30
16X6000 16 6000 6-15 20-1000 30 ’-1° 30 ’ 1100 37
20X2500 20 2500 10-20 20-800 30 ’-3° 900 30
20X3200 20 3200 10-20 20-800 30 ’-3° 950 30
20X4000 20 4000 8-15 20-800 30 ’-3° 1100 30
20X5000 20 5000 8-15 20-1000 30 ’-3° 1100 37
20X6000 20 6000 6-15 20-1000 30 ’-3° 1200 37
25X2500 25 2500 8-15 20-800 30 ’-1° 30 ’ 900 37
25X3200 25 3200 8-15 20-800 30 ’-1° 30 ’ 950 37
25X4000 25 4000 6-12 20-1000 30 ’-1° 30 ’ 1100 37
32X2500 32 2500 6-12 20-1000 30 ’-4° 1000 55
32X3200 32 3200 8-12 20-1000 30 ’-4° 1100 55
40X2500 40 2500 4-10 20-1000 30 ’-4° 1200 55
40X3200 40 3200 4-10 20-1000 30 ’-4° 1200 55
