Home >> METAL CUTTING>> Milling machine >> Universal tool milling machine
Specifications

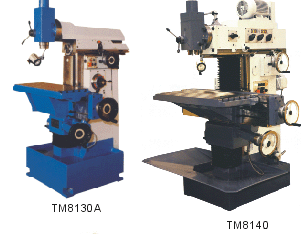

TM8130A
TM8132
TM8140
Table size (mm)
320x750
320x750(H) 225x830(V)
400x800(H) 250x1060(H)
Max. swivel of milling head
± 60°
± 90°
± 90°
Distance from axis of horizontal spindle to table surface (mm)
35-425
85-485
95-475
Distance from vertical spindle nose to table surface (mm)
85-450
55-445
Longitudinal travel of table (mm)
405
400
500
Cross travel of table (mm)
200
300
400
Vertical travel of table (mm)
390
390
400
Speed (rpm)
40-1600
40-2000(18 steps)
40-2000(18 steps)
Power(kw)
2.2
2.2
3
Overall size (cm)
117x121x160
122x120x180
139x143x182
Net weight (kg)
1100
1200
1400
