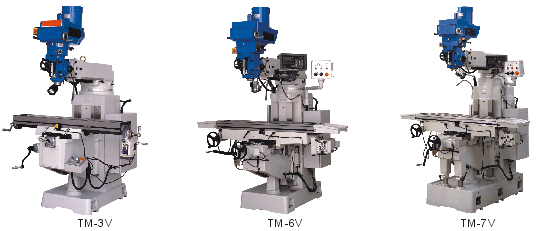

| Specification |
TM-2S
TM-2V
TM-2I |
TM-3VS
TM-3V
TM-3I |
TM-4S
TM-4V
TM-4I |
TM-5S
TM-5V
TM-5I |
TM-6S
TM-6V
TM-6I |
TM-7S
TM-7V
TM-7I |
| Table size(mm) |
1067x230x72
1244X230X72 |
1270
x254x82 |
1270X254X82
1370X254X82 |
1270X254X87
1470X305X87 |
1370X
330X100 |
1370X
360X100 |
Travel
(mm) |
Longitudinal (X) |
▲ 730 ▲939 |
▲ 890 |
▲900 ▲1000 |
▲820 ▲1000 |
▲ 840
▲1000 |
▲ 1030 |
| Cross ward (Y) |
▲ 320 |
▲ 405 |
■ 450 |
■ 425 ■405 |
■ 390 |
■ 495 |
| Vertical (Z) |
▲ 406 |
▲ 406 |
▲ 406 |
■ 450 |
■ 450 |
■ 500 |
| Quill |
127 |
127 |
127 |
150 |
150 |
150 |
| Spindle |
Rotation speed
(rpm) |
80-5440(16 steps)
60-4200(Variable speed),
0-4200(Inverter speed) |
70-3600(10 steps),
70-3900(Variable speed),
0-4200(Inverter speed) |
| Taper |
R8(NT30) |
R8
(NT30)NT40 |
NT40 |
| Motor (HP) |
3 |
3 |
3 / 4 |
5 |
5 |
5 |
| Max distance between spindle and table (mm) |
440 |
410 |
440 |
610 |
560 |
680 |
| Dimension (m) |
1.4x1.64x2.1 |
1.5x1.7x2.1 |
1.5x1.7x2.45 |
2.2x
1.7x2.45 |
2.4x
1.8x2.65 |
| Net weight (kg) |
1000 |
1280 |
1500 |
2000(2100) |
2200(2300) |
2700 |
| Model |
Feature application |
| M6323B |
Y axis swallowtail guidway; Z axis rectangular guidway |
| M6325A |
X, Z axis swallowtail guidway |
| M6325B |
Y axis rectangular guidway; Z axis swallowtail guidway |
| M6325 |
Y, Z axis rectangular guidway |
| M6325C |
Fixed structure is used to connect the mill head without ram; Y, Z axis rectangular guidway |
| M6325D |
Y, Z axis rectangular guidway |
| MU6325 |
Y, Z axis rectangular guidway; The machine can automatically feed with X and Y axis |
| M6330 |
Y, Z axis rectangular guidway |
| M6330A |
Fixed structure is used to connect the mill head without ram; Y, Z axis rectangular guidway |
| M6333 |
Fixed structure is used to connect the mill head without ram; Y, Z axis rectangular guidway | |
| Note: “S” :step speed milling head, “V” :Variable sped milling head, “I” : inverter milling head. |
| |
| Specifications |
KMS1054S |
KMS1054VS |
| Working surface of table (mm) |
254x1372 (10”x54”) |
| Max table load (kgs) |
300 |
| Longitudinal& vertical travel (mm) |
920x410x400 |
| Spindle travel (mm) |
127 |
| Automatic feed of spindle (mm/r) |
0.04/0.08/0.15 |
| Spindle bore |
R8 or ISO30 or ISO40 |
| Spindle motor |
2.2KW/3HP |
| Distance from spindle center to vertical guide-way （ mm ） |
172-756 |
| Distance from spindle nose to table surface (mm) |
R8 0-435 ISO40 0-400 |
| Max swivel of milling head ( o ) |
90º（R&L）45º |
| Ram travel (mm) |
458 |
| Spindle speed (RPM) |
80-5440(14 steps) |
60-4200(Variable speed) |
| Net/Gross weight (kgs) |
1250/1450 |
| Packing size (mm) |
1650x1750x2010 | |
 | |
| | |
 |
| |
|
| |
|
|
