Home >> METAL CUTTING>> Drilling machine >> Multi-purpose machine

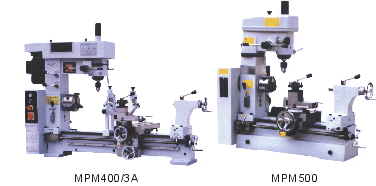

Specification
MPM400/3A
MPM400/3B
MPM500
MPM800
Distance between centers
400mm
400mm
500mm
800mm
Swing over bed
420mm
420mm
420mm
420mm
Max longitudinal travel
410mm
410mm
460mm
760mm
Max cross travel
80mm
80mm
200mm
200mm
Spindle taper
M.T.3
M.T.3
M.T.4
M.T.4
Spindle hole diameter
20mm
20mm
28mm
28mm
Spindle speed(rpm)
7steps
160-1360
7steps
160-1360
7steps
160-1360
7steps
160-1360
Metric thread can be cut
0.2-3mm
0.2-3mm
0.2-6mm
0.2-6mm
Spindle taper
M.T.3
M.T.3
M.T.3
M.T.3
Spindle travel
80mm
80mm
110mm
110mm
Spindle speed（rpm）
14steps
117-1300
14steps
117-1300
16steps
120-3000
Drilling capacity
15mm
22mm
End milling capacity
20mm
28mm
Motor power
0.55kw
Packing size
102x58x105cm
127x48x96cm
143x58x110cm
