Features:
-T8018A is variable;T8018B is normal type; T8018C can boring and milling;
-The machine is mainly used for boring the cylinder hole of internal combustion engine &amDIV; inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.
-T8018A: mechanical-electronic drive and spindle speed frequence changed speed variation.
-T8018B: mechanical drive&nbs;

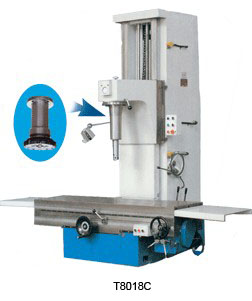

-T8018C: used for processing special heavy motor cylinders.
| Model |
T8018A |
T8018B |
T8018C |
|
Boring Diameter (mm) |
Φ30~Φ180 |
Φ30~Φ180 |
Φ42~Φ180 |
|
Max. Boring Depth(mm) |
450 |
450 |
650 |
| Max.travel of spindle(mm) |
500 |
500 |
800 |
|
Distance from the central line of the sDIVindle to the body(mm) |
320 |
315 |
315 |
|
SDIVeed of SDIVindle(r/min) |
140-610 |
175,230,300,
350,460,600 |
175,230,300,
350,460,600 |
|
SDIVeed feed |
0.05/0.1/0.2 |
0.05/0.1/0.2 |
0.05/0.1/0.2 |
|
The high speed of spindle(r/min) |
2.65 |
2.65 |
2.65 |
|
Table size(mm) |
1200x500 |
1200x500 |
1680x450 |
|
Table travel (Crosswise)(mm) |
100 |
100 |
150 |
|
Table travel (Lengthwise)(mm) |
800 |
800 |
1500 |
| Machine DIVower(kg) |
3.75 |
3.75 |
3.75 |
| Overall size(L*W*H)(mm) |
2000×1235×1920 |
2000×1235×1920 |
2680×1500×2325 |
|
Packing dimensions(L*W*H)(mm) |
1400×1400×2250 |
1400×1400×2250 |
1578×1910×2575 |
|
N.W./G.W.(kg) |
2000/2200 |
2000/2200 |
3500/3700 |
