Home >> METAL CUTTING>> Lathe >> Heavy lathe
Specification

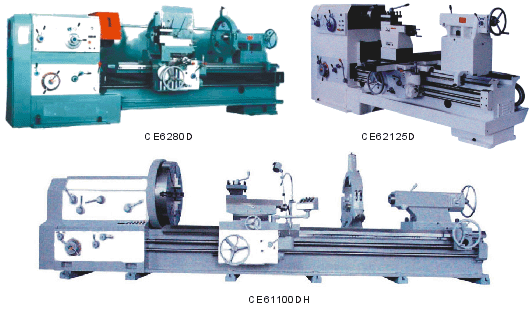

CE6263D
CE6280D
CE61100D
CE62125D
CE61100DH
CE61140DH
CE61160DH
Max swing over bed
670mm
840mm
1000mm
1250mm
1000mm
1400mm
1600mm
Max swing over cross slide
390mm
560mm
720mm
970mm
580mm
980mm
118/0mm
Max swing over gap
930mm
1100mm
1250mm
1510mm
3150/4150/5150/6150mm
Valid lengthin gap
340mm
340mm
340mm
Width of bed
550mm optional : 600mm
860mm
Max capacity of worktable
3t
7t
Spindle hole & taper
120 or 140mm
120mm
120mm
Spindle speeds
6-1100rpm or 6-800rpm/18steps
6-800rpm/18 steps
12 steps (6-270r/min)
Cross slide travel
420mm
580mm
695mm
600mm
780mm
880mm
Center distance
750-12000mm
750/1500/2000/3000/
4000/5000/6000
3000/4000/5000/6000mm
Metric thread range
1-24mm/51kinds
50kinds1-240mm
47kinds 1-75mm
Module thread range
0.5-120 π m/53kinds
53kinds 0.5-120 π m
40kinds 0.5-37.5 π m
Diametrical thread range
30-1/8D.P/42kinds
42 kinds 30-1/8D.P
36kinds 1/2-30D.P
Longitudinal feeds
0.04-24mm/72kinds
64kinds 0.1-24.3mm
64 kinds 0.1-7.8mm
Cross feeds
0.02-12mmn/72kinds
64kinds 0.05-12mm
64kids 0.05-3.9mm
Main drive motor
1.1kw(15kw optional)
15kw
22kw
Packing size(mm)
Length
2760/3510/3965/
5010/6010
2815/3515/4015/
5015 /6160/7160/8160
6245/7245/8245/9245mm
Width
1600
1395
1395
2020
Height
1565
1650
1725
1855
1340
Net weight（kg）
3600/4300/5000/5800
/6500 7200/8000/
11000/13000/1500
3600/4300/5000/
5800/ 6500/7200
/8000
