Home >> METAL CUTTING>> Milling machine >> CNC milling machine

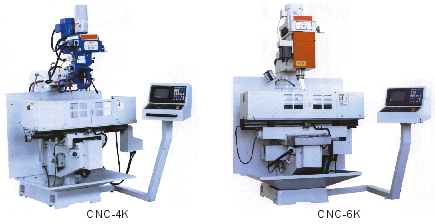

Specification		CNC-4K	CNC-5K	CNC-6K
Table Size(mm)		1270x254	1370x330	1370x330
Travel(mm)	Longitude(X)	730	800	800
Travel(mm)	Crossward (Y)	310	330	330
Quill(mm)	Travel	127	127	150
Quill(mm)	Diameter	85.725	85.725	105
Spindle Rotation(rpm)		60-4200 Variable speed/Inverter speed		70-3900 Variable speed/Inverter speed
Spindle	Taper	NT30	NT30	NT40
Spindle	Motor	3HP	5HP	5HP
Max Distance Between And Spindle And Table		400mm	430mm	430mm
T Slot(mm)		16x3x65	16x3x65	16x3x65
Dimension(mm)		1700x1600x2300	1900x1750x2450	1500x1650x2450
Net Weight(kg)		1400	2000	2200
