| Specification |

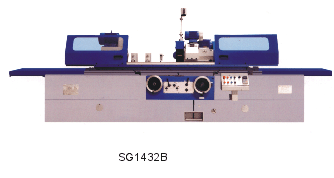

SG1432B/1000
SG1432B/1500 |
SGW1420/500
SGW1420X750 |
SG1450/1500
SG1450/2000
SG1450/3000 |
SG1380/3000/
SG1380/4000/
SG1380/5000/ |
| Distance between centers(mm) |
1000/1500 |
500/750 |
1500/2000/3000 |
3000/4000/5000 |
| Max. length ground(O.D) |
8-320mm |
5-200mm |
25-500mm |
50-800mm |
| Max. length ground(I.D)(mm) |
30-100 |
25-100 |
30-200 |
|
| Max. weight of workpiece(kg) |
150 |
100 |
1000 |
5000 |
| Wheel spindle speed(rpm) |
1670 |
1670 |
1330/665 |
740 |
| Max travel(mm) |
246 |
205 |
370 |
550 |
| Max dimension of wheel(mm) |
400x50x203 |
400x50x203 |
500x75x305 |
900x75x305 |
| Longitudinal travel speed range of table |
0.1-4 |
0.1-4 |
0.1-3 |
0.1-4 |
| Wheel head motor power(kw) |
5.5 |
4 |
5/7.5 |
18.5 |
| Packing dimension(cm) |
338x200x205
/438x200x205 |
260x206x205/
300x206x205 |
540x270x210
610x270x210
810x270x210 |
|
