  Home >> METAL CUTTING>> Lathe >> Small lathe

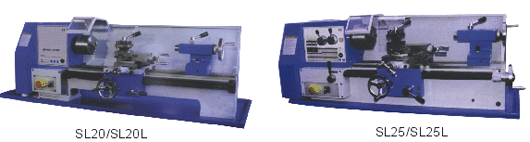

Specification SL20 (SL20L) SL25 (SL25L)
Height of centers(mm) 110

Max. swing over bed(mm) Φ200 Φ250
Max. swing over carriage(mm) Φ115

Max. distance between centers 350(520)mm 450(700)mm
Taper of spindle hole MT3 MT4
Range of spindle speeds(rpm) 120-2000 115-1620
Metric thread cutting （mm） 0.4-3 (11steps) 0.2-3.5
Range of longitudinal feeds 0.04-0.3mm/rev

Taper of tailstock sleeve MT2 MT3
Motor （kw） 0.37 0.75
Overall dimension(mm) 1080x610x380 1260/1510x570x580
Net weight（kg） 110/125 151/171
Number of steps of spindle speeds 6 6

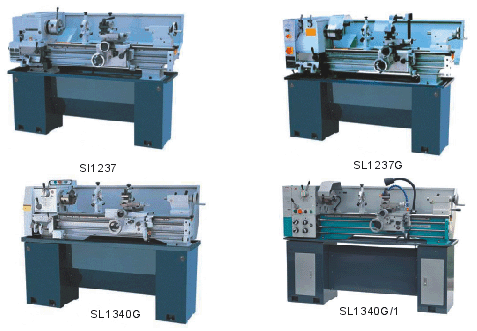

Specification SL1237 SL1237G SL1340G
 SL1340G/1
Swing over bed(mm) 305 330
Swing over gap(mm) 440 476
Swing over carriage(mm) 173

Distance between centers(mm) 940 1000
Step s of spindle speed 12 8
Range of spindle speed(rpm) 64-1500 70-2000
Motor power（kw） 1.1 1.5
Packing size(mm) Machine 1780 x 740 x 750 1920 x 760 x 760
Stand Large 415 x 360 x 680

Small 290 x 360 x 680

N.W/G.W (machine) 385kg 495/555kg
N.W/G.W (stand) 60kg

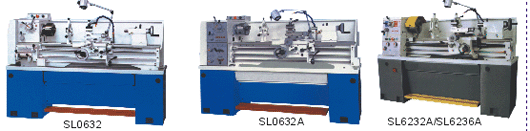

Model SL0632 SL0632A SL6232A SL6236A
Max swing over bed 330mm 330mm 330mm 356mm
Max sewing over carrier 185mm 198mm 192mm 220mm
Max sewing over gap 476mm 476mm 475mm 506mm
Spindle bore Φ 38mm Φ 38mm Φ 38mm
Spindle speed 70-2000r/min 70-2000r/min 45-1800RPM
Metric thread range 0.25-11mm/32 0.45-10mm/27 0.4-7.0(37kinds)
Inch thread range 4-112T.P.I/40 3 1/2-80T.P.I/36 4-112(40kinds)
Longitudinal feed range 0.091-2.553mm 0.067-1.019mm 0.043-0.653mm
Cross feed range 0.025-0.69mm 0.018-0.275mm 0.015-0.220mm
Travel of tailstock 95mm 95mm 120mm
Center distance 500/750/1000mm 500/750/1000mm 750/1000mm
Main drive motor 1.5kw 1.5kw 1.5/2.4kw
Packing size(mm)

1670x760x1485/1920x760x1485
Machine N.W/G.W(kg) 400/395/495 400/495/595 700/820 750/880

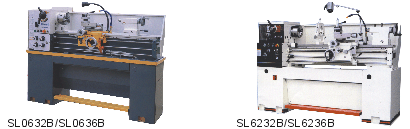

Specification SL0632B SL0636B SL6232B SL6236B
Max.swing diameter over bed 330mm 360mm 330mm 356mm
Max. swing diameter over gap 476mmm 502m 475mm 506mm
Swing diameter over carriage 198mm

224mm

195mm 220mm
Bed width 187mm 206mm
Max. length of work piece 1000mm 750/1000mm
Spindle nose and bore D 1-4 Ф38mm D 1-4 Ф38mm
Taper of hole in spindle Morse No. 5 Morse No. 5 Morse
Spindle speeds steps and range 8steps 70-2000r/min 16steps 45-1800rpm
Inch thread 40-56T.P.I. 4-112T.P.I.(40 kinds)
Metric thread 0.4-7mm 0.40-7.0(37kinds)
Longitudinal feed range 0.002-0.0548in/r(0.052-1.392mm/r) 0.043-0.653mm/r(0.0012”-0.0294” /r)
Transversal feed range 0.0007-0.0187in/r(0.014-0.38mm/r) 0.015-0.220mm/r(0.0003”-0.01”/r)
Max. travel of tailstock quill 100mm 120mm
Taper hole of tail stock No. 3 Morse No. 3 Morse
Electric motor 1.5kw(2HP) 1.5/2.4kw (3HP)
Packing size 1930x760x1590mm 1670x760x1485/1920x760x1485mm
Net weight /Gross weight 550/650kg 610/710kg 700/820kg 750/880kg

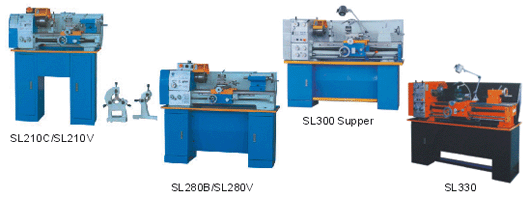

Specification SL210C SL210V SL280B

SL280V

 SL300
SL300Super		 SL330
Max.swing over bed 210mm 280mm 310mm 330mm
Max.swing over cross slide 110mm 150mm 180mm 180mm
Max.swing in gap

450mm 470mm
Distance between centers 320mm 610mm 750/910mm 1080mm
Spindle bore 20mm 26mm 38mm 38mm
Taper of Spindle bore M.T.3 M.T.4 M.T.5 M.T.5
Range of spindle speed(rmp) 125-2000 0-2500 (variable) 125-2000 0-2500 (variable) 65-1810 65-1810
Range of longitudinal feeds 0.1-0.2mm/rev 0.1-0.25mm/rev 0.0527-1.2912mm/rev. 0.0527-1.2912mm/rev
Range of cross feeds(mm/rev)

0.014-0.3488 0.014-0.3488
Range of metric threads 0.4-3mm 0.3-2.5mm 0.4-7mm 0.4-7mm
Range of inch threads

4-60TPI 4-60TPI
Taper of tailstock bore M.T.2 M.T.#3 M.T.3 M.T.3
Power of motor (kw) 0.550 0.75 1.0 1.1/1.5 1.1/1.5

Model CE6236L CE6241L
Max. swing over bed 360mm(14") 410mm(16")
Max. swing over cross slide 215mm(8-5/16") 255mm(10")
Diameter of swing over gap 540mm(21-1/4") 580mm(23")
Max. length of work piece 1000mm(40")
Bed width 250mm
Spindle bore 52mm
Spindle nose D1-6
Taper in sleeve M.T.No.4
Speeds range( r.p.m) 45-1800
Speeds number 16 kinds
Threads metric/inch range 0.2-14mm(39 kinds)/ 2-72TPI(45 kinds)
Travel of tailstock sleeve 120mm(4-3/4")
Diameter of tailstock sleeve 50mm
Taper hole of tailstock sleeve No.4 Morse
Main motor 2.8/3.3kw(3.8/4.5HP) or 5HP
Overall size of lathe(LxWXH) 1940x850x1300mm 1940x850x1320mm
Packing size of lathe(LxWXH) 2060x900x1640mm 2060x900x1640mm
Net weight 1500kg 1550kg
