Home >> METAL CUTTING>> Milling machine >> Milling & drilling machine

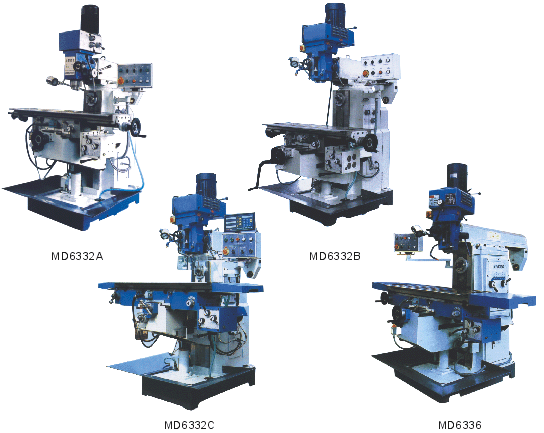

Specifications	MD6332A	MD6332B	MD6332C	MD6336
Spindle taper	ISO40	ISO40	ISO40	ISO40(Vertical) ISO50(Horizontal)
Spindle travel	120mm	150mm	150mm
Distance from spindle to table	110-410mm	155-455mm(V)	155-450mm(V)	135-485mm
Distance from spindle to column	200-500mm	200-500mm(V)	200-600mm
Distance from horizontal to table	0-300mm	0-300mm(H)	0-300mm(H)	0-350mm
Distance from horizontal to supporting	190mm	190mm(H)		230mm
Vertical spindle speed	95-1770rpm	20step76-6980rpm	20step76-6980rpm	75-3500rpm
Horizontal spindle speeds	60-1350rpm	12step60-1350rpm	12step60-1350rpm	60-1800rpm
Table size	1250x320mm	1250x320mm	1250x320mm	1250x360mm
Table travel(mm)	600x300x300	600x300x300	800x300x300	1000x300x350
Main motor power	2.2kw	3.7kw(V)2kw(H)	3.7kw(V)2kw(H)	5.5kw(V)4kw(H)
Overall dimension(mm)	1700x1520 x2200	1700x1520 x2260	1820x1520 x2270	2220x1790 x2360
N.W / G.W	1550x1650kg	1750/1950kg	1850/2050kg	2500/2700kg
