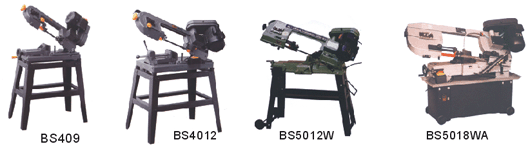

| Specification |
BS409 |
BS4012 |
BS5012W |
BS5018WA |
| Motor |
400W |
550W |
370W |
70W |
| Blade size (mm)(LxWxH) |
1300x12.5x0.63 |
1640x13x0.65 |
1638x12.5x0.6 |
2360x20x0.9 |
| Blade speed (50Hz) |
20,29,50m/min |
20,30,50m/min |
20,29,50m/min |
34,41,59,98m/min |
Cutting capacity
(90° ) |
Round |
90mm |
110mm |
|
180mm |
| Square |
90x115mm |
100x150mm |
|
180x300mm |
| Cutting capacity (45° ) |
Round |
65mm |
70mm |
100mm |
110mm |
| Square |
65x65mm |
85x65mm |
100x150mm |
110x180mm |
| N.W/G.W |
31/33kg |
71/74kg |
61/64kg |
158/185kg |
| Packing size (mm) |
760x305x465 |
1075x517x465 |
1020x320x390 |
1250x445x1070 | |
| |

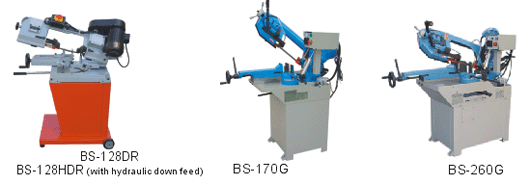

| METAL SAW MACHINE |
 |
| Model |
BS-128DR/ BS-128HDR |
BS-170G |
BS-260G |
Max. Capacity
(mm) |
Circular @90° |
128 |
170 |
227 |
| Rectangular @90 |
128 x 150 |
170 x 210 |
260 x 110 |
| Circular @45 |
95 |
120 |
150 |
| Rectangular@45° |
75 x 95 |
110 x 110 |
200 x 125 |
| Circular @60 |
44 |
70 |
90 |
| Rectangular @60 |
44 x 56 |
60x 60 |
85x 85 |
| Blade speed |
@60HZ(MPM) |
24,47,61 |
|
|
| @50 HZ(MPM) |
20,29,50 |
80(2P), 40(4P) |
72(2P), 36(4P) |
| Blade size(mm) |
13 x 0.6 x1638 |
20 x 0.9 x 2085 |
27 x 0.9 x 2455 |
| Motor(kw) |
0.375,0.55 |
0.75 |
0.75 |
| Drive |
V-belt |
Gear |
Gear |
| Packing size(mm) |
960 x 540 x 610 |
1250 x 720 x 1000 |
1460 x 720 x 1100 |
| N.W/./G.W.(kg) |
110/140 |
170/202 |
190/263 | |
| |

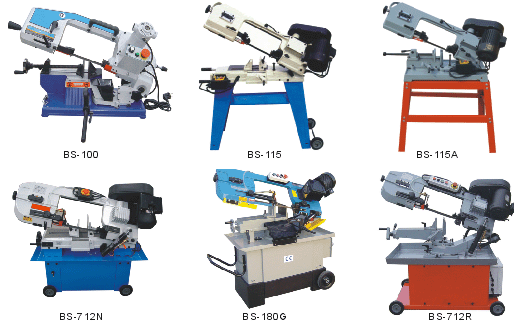

| METAL SAW MACHINE |
 |
| Model |
BS-100 |
BS-115/BS-115A |
BS-712N |
BS-180G |
BS-712N |
BS-712R |
| Max. Capacity (mm) |
circular
@ 9 0 |
100 |
115 |
178 |
180 |
178 |
178 |
Rectangular
@90 |
100 x150 |
100 x150 |
178 x305 |
180 x260 |
178 x 305 |
178 x 210 |
| Circular @ 45 |
60 |
100 |
127 |
105 |
127 |
127 |
Rectangula
r@45 |
60 x100 |
60 x 100 |
120 x 125 |
120 x 105 |
120 x 125 |
85 x 140 |
| Blade Speed |
@ 60HZ
(MPM) |
54 |
24,37,67 |
27,41
,59,78 |
39,66,82 |
27,41,
59,78 |
27,41,
59,78 |
@ 50HZ
(MPM) |
45 |
80,120,220 |
22,34
,49,64 |
34,55,66 |
22,34,
49,64 |
22,34,
49,64 |
| Blade Size(mm) |
13 x0.65
x1470 |
13 x 0.6
x1638 |
20 x 0.9
x2362 |
20 x 0.9
x2362 |
20 x 0.9
x2362 |
20 x 0.9
x2362 |
| Motor(w) |
375 |
375 |
750 |
750 |
750 |
750 |
| Driver |
Gear |
V-belt |
V-belt |
Gear |
V-belt |
V-belt |
| Packing Size(cm) |
55 x 37x 40 |
97 x 46x 46
/108 x 48x 56 |
125 x 45x 115 |
130 x 57x 112 |
125 x 45x 115 |
132 x 77x 115 |
| G.W./N.W.(Kg) |
26/23 |
72/68 |
192/170 |
210/180 |
1920/170 |
240/190 | |
| |

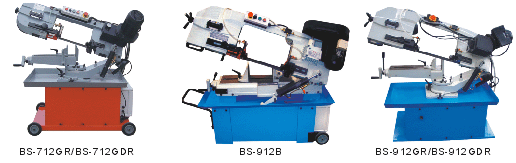

| METAL SAW MACHINE |
 |
| Model |
BS-712GR |
BS-712GDR |
BS-912B |
BS-912G |
BS-912GR |
BS-912GDR |
| Max. Capacity (mm) |
circular@90 |
178 |
178 |
229 |
229 |
229 |
229 |
| Rectangular@90 |
178 x210 |
178 x305 |
178 x3056 |
178 x305 |
178 x 305 |
178 x 305 |
| Circular@ 45 |
127 |
127 |
150 |
150 |
150 |
150 |
| Rectangular@45 |
85 x 140 |
85 x 140 |
127 x 150 |
127 x 150 |
127 x 150 |
127 x 150 |
| Blade Speed |
@ 60HZ(MPM) |
34,70
,104 |
34,70
,104 |
32,60,
88,115 |
38,78
,115 |
38,78
,115 |
38,78
,115 |
| @ 50HZ(MPM) |
29,59,87 |
29,59,87 |
26,,50,73,95 |
31,65,95 |
31,65,95 |
31,65,95 |
| Blade Size(mm) |
20x0.9
x2362 |
20x0.9
x2362 |
27x0.9
x2655 |
27x0.9
x2655 |
27x0.9
x2655 |
27x0.9
x2655 |
| Motor(kw) |
0.75,1.1 |
0.75,1.1 |
1.1,1.5 |
1.1,1.5 |
1.1,1.5 |
1.1,1.5 |
| Driver |
Gear |
Gear |
V-belt |
Gear |
Gear |
Gear |
| Packing Size(cm) |
132 x 77x 115 |
132 x 77x 115 |
158 x 62x 115 |
158 x 62x 115 |
160x 60x 115 |
160x 60x 115 |
| G.W./N.W.(Kg) |
245/210 |
260/210 |
260/230 |
250/200 |
260/220 |
280/230 | |
| |

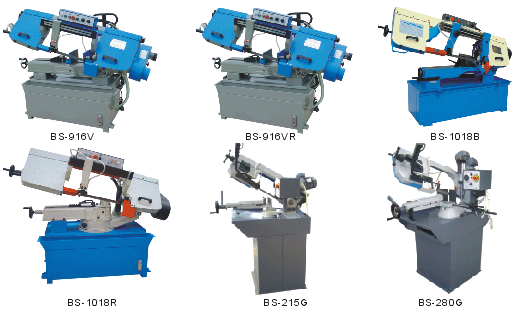

| METAL SAW MACHINE |
 |
| Model |
BS-916V |
BS-916VR |
BS-1018B |
BS-1018R |
BS-215G |
BS-280G |
| Max. Capacity (mm) |
circular@90 |
229 |
229 |
254 |
254 |
150 |
220 |
| Rectangular@90 |
127 x 405 |
127 x 405 |
127 x 457 |
160 x 406 |
200 x 120 |
250 x 155 |
| Circular@ 45 |
150 |
150 |
150 |
170 |
120 |
160 |
| Rectangular@45 |
150 x 190 |
150 x 190 |
150 x 190 |
160 x 190 |
130 x 90 |
160 x 110 |
| Blade Speed |
@ 60HZ(MPM) |
22-122 |
22~122 |
35,60,
88,115 |
35,60,
88,115 |
|
|
| @ 50HZ(MPM) |
18-102 |
18~102 |
26,50,
73,95 |
26,50,
73,95 |
40,80 |
40,80 |
| Blade Size(mm) |
27x0.9x 3075 |
27x0.9x
3075 |
27x0.9x
3280 |
27x0.9x
3215 |
20x0.9x
2060 |
27 x 0.9x 2450 |
| Motor(KW) |
1.5 |
1.5 |
1.5 |
1.5 |
0.6 ,0..85 |
0.75 ,1.1 |
| Driver |
V-belt |
V-belt |
V-belt |
V-belt |
Gear |
Gear |
| Packing Size(cm) |
180x
77x114 | ,
180x
77x114 |
183 x
83x115 |
180 x
77x115 |
116 x 71x79 |
136x
78x100 |
| G.W./N.W.(Kg) |
360/300 |
380/320 |
385/310 |
360 /300 |
348 /300 |
287 /254 | |
| | |
|
| |
|
|
