Home >> METAL CUTTING>> Milling machine >> Bed type milling machine
Specification
BM-600
BM-600SC
Table size
405 x 1370mm
405 x 1370mm
Travel
Longitude(X)
1000mm
1000mm
Cross(Y)
460mm
460mm
Vertical(Z)
630mm
575mm
Quill
150mm
150mm
Spindle
Speed
70-3600rpm(10steps)
70-3900rpm(Variable speed)
0-4200rpm(Inverter speed)
Taper
NT40
NT40
Motor
5HP(3.7KW)
7.5HP
Max distance between spindle and table
760mm
640mm
Machine dimension
220 x 172 x 215cm
Machine weight
2800kgs
Specification

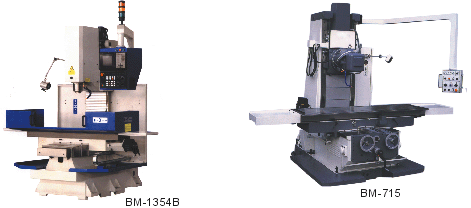

BM-1354B
BM-1654
BM-2063
BM-2473
BM-715
Table size(mm)
330x1370
406x1370
510x1600
610x1854
500x2100
Table loading capacity(kg)
400
800
1200
1500
2000
T slot (W/mm*No)
16 *3
16*5
18*5
18*5
20*4
X axis travel(mm)
800
1000
1200
1500
1500
Y axis travel(mm)
450
480
700
700
700
Z axis travel(mm)
480
600
600
700
700
Rapid feed rate(mm/min)
8000
8000
10000
10000
3500
Max feed rate(mm/min)
3000
3000
4000
4000
3500
Spindle speed(rpm)
40-6000
40-6000
40-6000
40-6000
40-1600 / 12 steps
Spindle nose
BT40
BT40
BT40/BT50
BT40/BT50
Spindle motor(kw)
5.5
7.5
7.5
7.5
X/Y/Z servo motor(kw)
1.0/1.0/1.5
1.5/1.5/1.5
2.0/2.0/2.0
2.0/2.0/2.0
7.5
Spindle quill diameter(mm)
120
150
150/160
150/160
Spindle center to column surface
450
520
640
695
610
Positioning accuracy(mm)
±0.015
±0.015
±0.015
±0.015
Packing size(cm)
295X228X245
320x228x265
450x275x280
290x315x290
330x238x275
Net weight(kg)
2600
3800
5000
6000
7300
Controller
FANUC, SIEMENSE, MITSUBISHI,HD-500
