| Specification |

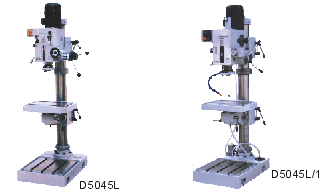

D5032L
D5032L/1 |
D5040L
D5040L/1 |
D5045L
D5045L/1 |
| Max drilling dia |
32mm |
40mm |
40mm |
| Spindle taper |
MT3 |
MT4 |
MT4 |
| Spindle travel |
130mm |
| Min. distance from spindle axe to column |
283/290mm |
| Max. distance from spindle nose to stand table |
1125mm |
| Max distance spindle nose to table |
725mm |
| Max. swivel angle of table horizontally |
360° |
| Max. angle of table leaned |
45° |
| Table size |
380x300mm |
| Spindle speed (6steps) |
50Hz: 80,145,260,375,710,1250 r/min
60Hz: 95,175,310,450,750,1500 r/min |
| Motor power |
0.75kw |
1.1kw |
1.1kw |
| Weight |
430kg |
430kg |
450kg |
| Packing size (LxWxH) |
1850x740x1000mm | |
| |
 |
| Model |
WOOD D13 |
WOOD D16 |
WOOD D20 |
| Max drilling capacity |
Φ 13mm |
Φ 16mm |
Φ 20mm |
| Spindle travel |
100mm |
100mm |
100mm |
| Spindle taper |
MT2 |
MT2 |
MT2 |
| Column diameter |
Φ 46mm |
Φ 60mm |
Φ 70mm |
| Spindle speed |
5speed |
5speed |
5speed |
| Rang of speed（rpm） |
400-3000/5 steps |
470-3030/5 steps |
390-3000/5 steps |
| Rang of spindle tilting |
- 45°～90° |
- 45°～90° |
- 45°～90° |
| Max distance from spindle axis to surface of column |
345mm |
400mm |
400mm |
| Max. distance from spindle end to surface of table |
270mm |
470mm |
1075mm |
| Max. distance from spindle end to surface of base |
380mm |
550mm |
1260mm |
| Table size |
195x220mm |
225x230mm |
262x262mm |
| Base size |
347x236mm |
430x260mm |
600x350mm |
| Motor power |
350w |
550w |
550w |
| Packing size |
762x402x278mm |
932x407x323mm |
1150x500x295mm | |
| | |
 |
| |
|
| |
|
|
