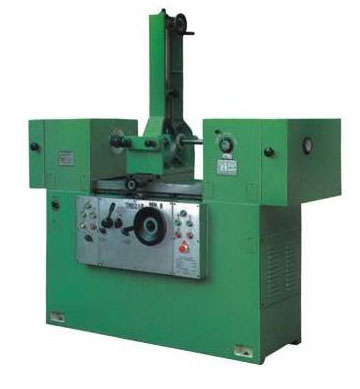

Con-rod Boring Machine
Features:
Con-rod Boring Machine T82160D can be used with cylinder body bushing boring machine Model T8115Bx16. It has good performance, better structure easy operation and high accuracy. It is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors. In case of necessity, rod bushing seat hole can be fine bored. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps. Besides, it has the accessories for centering sectifying tool, boring tool and boring micro-adjustment etc.
| Model |
T8210D |
T8216D |
| Bored hole diameter(mm) |
16-100 |
15-150 |
| Distance of rod 2 hole centers(mm) |
100-425 |
85-600 |
| Work table travel(mm) |
220 |
320 |
| Main shaft speed(rpm) |
350, 530, 780, 1180 |
140,215,355,550,785,1200 |
| Boring rod diameter(mm) |
14, 16, 24, 40 |
14,29,38,59 |
| Main motor power(kw) |
0.65 / 0.85 |
0.85/1.1 |
| Machine size(mm) |
1150x570x1710 |
1300x860x1760 |
| Net Weight(kg) |
800 |
920 |

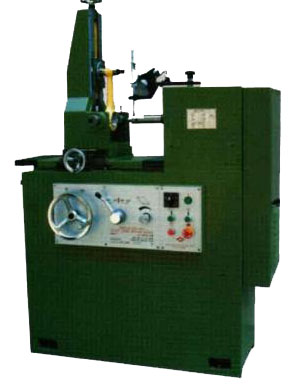

Con-rod Boring & Grinding Machine
Features:
Con-rod Boring & Grinding Machine TM8216 is mainly applied to bore and grind bearing holes (including copper quill and connecting-rod tile) on connecting rod of gasoline and diesel engine in automobile, tractor and other power sources. Customer also can carry out fine boring or grinding process to connecting rod bearing seat of deformed workpiece, after grinding combining surface, to ensure the parallelism of two center lines. Equipped with various specialized fixture, it can be used to complete fine boring and grinding process to piston pin hole, gas pump bearing hole and valve seat hole, etc.
| Model |
TM8216 |
| Range ofhole diameter to be bored(mm) |
40-160 |
| Range of hole diameter to be grinded(mm) |
50-160 |
| Range of 2 rod hole centers distance(mm) |
80-650 |
| Longitudinal travel of worktable(mm) |
450 |
| Boring head motor(kw) |
0.55/0.75 |
| Grinding head rotation/revolution motor(kw) |
0.55/0.37 |
| Hydraulic system motor(kw) |
0.55 |
| Overall size(mm) |
1700x1300x1800 |
| Net weight(kg) |
1400 |
|
| |
|
|
