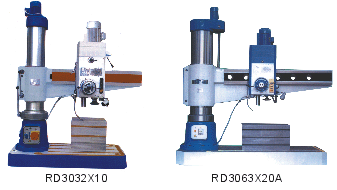

Home >> METAL CUTTING>> Drilling machine >> Radial drilling machine
Specification
RD3032x7
RD3032x8
RD3040x8
RD3032x10
RD3040x10
RD3040x16
RD3050x16
RD3063x20A
RD3080x20
RD3080x25
Max Drilling capacity(mm)
31.5
32/40
32/40
40/50
63
80
80
Distance spindle axis to column generating line
300-700mm
320-820mm
200-1000mm
350-1600mm
450-2050mm
450-2000mm
450-2000mm
Diameter of column
150mm
200mm
240mm
350mm
Spindle taper
MT3
MT4
MT4
MT4/MT5
MT5
MT6
MT6
Spindle travel
130mm
240mm
250mm
315mm
400mm
400mm
Spindle speeds range (r/min)
100-1600
75-1220
71-1800
25-2000
20-1600
16-1250
16-1250
Spindle speeds series
8
6
8
16
16
16
Range of spindle feeds (min/r)
0.8,0.14
,0.23
0.1-0.25
0.13-0.54
0.04-3.2
0.04-3.2
0.04-3.2
Max. distance spindle nose to working surface of base(mm)
275-680
320-820
200-1000
350-1250/320-1220
400-1600
348-1548
450-2000
Dimension of worktable (cm)
25x25
x25
40x40x35
40x45x40
63x50x50
Overall size(cm)
124x55
x120
141x72
x189
176x80
x23.6
250x106 x265
311x125 x344
410x125
x344
Power of main motor (kw)
0.75/1.1
1.5
2.2
3/4
5.5
7.5
7.5
G.W/N.W (kg)
475/380
1425/1200
2100/1600
4300/3500
8000/7000
8400/7400
