Home >> METAL CUTTING>> Grinding machine >> Universal grinder

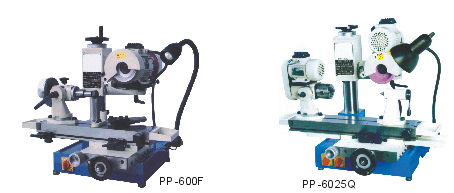

Specification	PP-600F	PP-6025Q
Longitudinal travel of the working table	300mm	400mm
Cross travel of the working table	150mm	150mm
Size of the worktable	130x550mm	130x680mm
Elevating distance of wheel head	120mm	120mm
Rotating angle of wheel head	360°	360°
Grinding wheel size	150x50x32mm	125x50x32mm
Speed of grinding wheel	2800rpm	5000rpm
Power and voltage	3/4HP , 110v/220v/38V	3/4HP, 110v/220v/380V
Net/Gross weight	160/168kg	209/222kg
Packing size	700x630x630mm	730x710x715mm

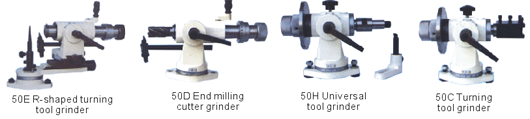

OPTIONAL ACCESSORIES
