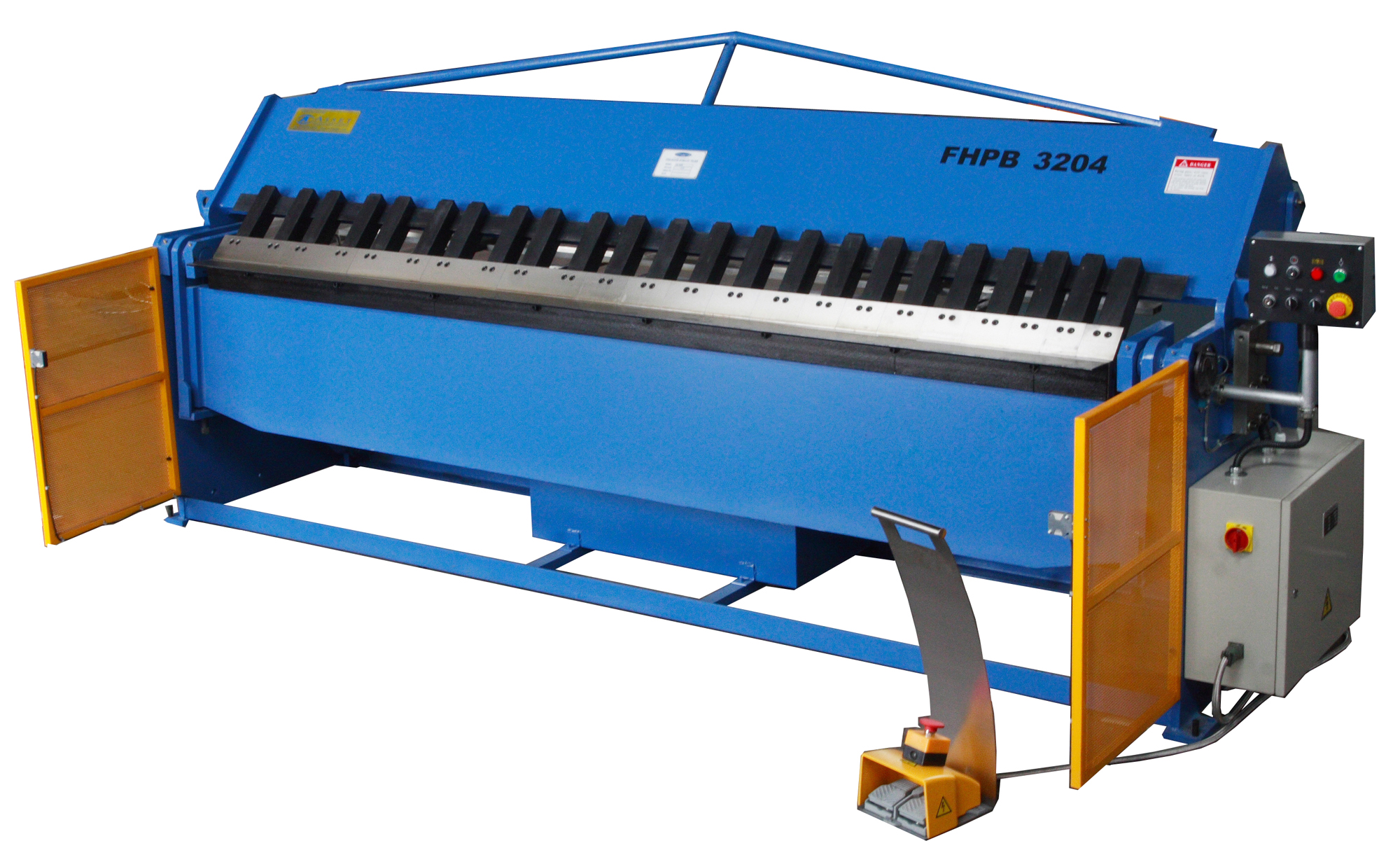

Hydraulic Folding Machine
Technical Parameters
|
Model |
Folding capacity
(mm) |
Folding rotation angle
( °) |
Max. opening of top beam
(mm) |
Main motor power
(kw) |
Oil pump flux.
(L/r)
|
Oil pump pressure
(Mpa) |
Weight
(Kg) |
Overall size
(mm) |
|
W62Y-2x2500 |
2x2500 |
120 |
110 |
2.2 |
7.2 |
21 |
1980 |
3400x1140x1450 |
|
W62Y-3x2000 |
3x2000 |
120 |
110 |
4.0 |
14.1 |
21 |
2500 |
2900x1640x1650 |
|
W62Y-3x2500 |
3x2500 |
120 |
110 |
4.0 |
14.1 |
21 |
2750 |
3400x1640x1650 |
|
W62Y-3x3200 |
3x3200 |
120 |
110 |
4.0 |
14.1 |
21 |
3350 |
4100x1640x1650 |
|
W62Y-3x4000 |
3x4000 |
120 |
110 |
4.0 |
14.1 |
21 |
6100 |
4900x1640x1850 |
|
W62Y-4x1320 |
4x1320 |
120 |
110 |
4.0 |
14.1 |
21 |
1950 |
2270x1640x1650 |
|
W62Y-5x2000 |
5x2000 |
120 |
110 |
5.5 |
18.6 |
21 |
3050 |
2950x1640x1650 |
|
W62Y-5x2500 |
5x2500 |
120 |
110 |
5.5 |
18.6 |
21 |
3250 |
3450x1640x1650 |
|
W62Y-5x3200 |
5x3200 |
120 |
110 |
5.5 |
18.6 |
21 |
3950 |
4150x1640x1650 |
Note:
1. 3 types(U, S D type) is avilable for this machine.
2. U type(Universal type) equipe the dial to control folding angle, and the back gauge is manual adjustment.
3. S type(Single axe NC type) equipe NC control for folding angle, and the back gauge is manual adjustment.
4. D type(Dual axis NC type) equipe NC controls for folding angle and back gauge.
5. All important electronic components and device are from the big famous international companies, as, OMRON, ABBA, SIEMENS, SCHNEIDER, etc.
