  Home >> METAL CUTTING>> Machine accessories >> Machine Vice

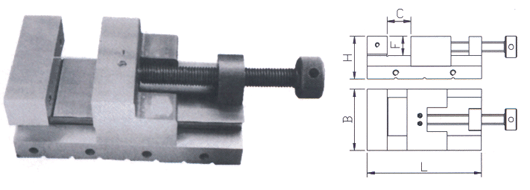

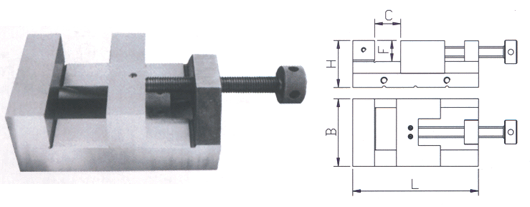

Model Size B (mm) C (mm) F
(mm)		 H
(mm)		 Overall dimension(mm) Parallelism(∥)
(mm)		 Perpendicularity(⊥)
(mm)
QJ40 40X32 40 32 19 35 92X40X36 0.008 0.005
QJ60 60X50 60 50 23 45 128X60X48 0.010 0.005
QJ80 80X70 80 70 30 55 164X80X55 0.010 0.006
QJ100 90X100 100 90 36 65 200X100X65 0.012 0.006
QJ125 100X125 125 100 43 80 228X125X80 0.012 0.008

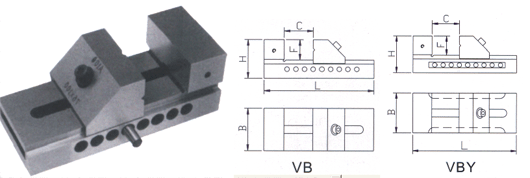

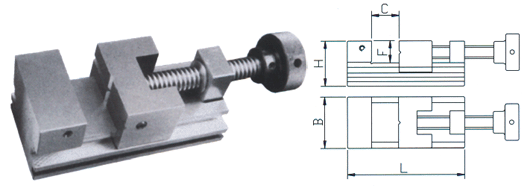

Model Size B
(mm)		 C
(mm)		 F
(mm)		 H
(mm)		 L
(mm)		 Accuracy
VB20 48X75 48 75 30 58 150 Parallelism(∥):
0.05/100mm
Perpendicularity(⊥):
0.05mm
VB25 63X90 63 90 35 67 180
VB30 73X100 73 100 35 67 190
VB35 88X125 88 125 45 85 225
VB40 98X125 98 125 45 85 235
VB50 125X160 125 160 50 100 287

Model Size B
(mm)		 C
(mm)		 F
(mm)		 L
(mm)		 Accuracy(mm)
Parallelism Perpendicularity
VB20Y 48x75 48 75 30 150 0.005/100 0.005
VB25Y 63x90 63 90 35 180 0.005/100 0.005
VB30Y 73x100 73 100 35 190 0.005/100 0.005
VB35Y 88x125 88 125 45 225 0.005/100 0.005
VB40Y 98x125 98 125 45 235 0.01/100 0.005
VB50Y 125x160 125 160 50 287 0.01/100 0.005

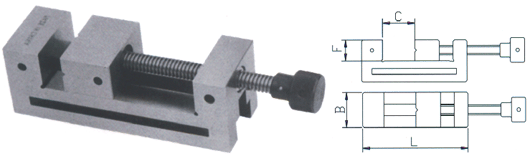

Model Size B (mm) C (mm) F (mm) H (mm) L (mm)
QY86 86X86 86 86 27 60 160
Parallelism(∥): 0.01/100MM Perpendicularity(⊥)0.010MM

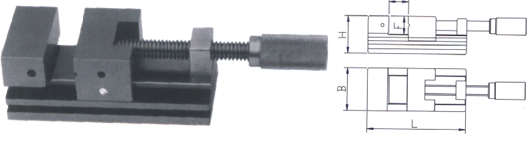

Model Size B
(mm)		 C
(mm)		 F
(mm)		 L
(mm)		 Accuracy(mm)
Parallelism∥ Perpendicularity⊥
VD50 50x64 50 64 35 150 0.005/100 0.005
VD64 64x76 64 76 35 172 0.005/100 0.005
VD76 76x88 76 88 35 187 0.005/100 0.005
VD88 88x100 88 100 40 215 0.005/100 0.005
VD100 100x120 100 120 40 240 0.006/100 0.008
VD150 150x175 150 175 50 305 0.01/100 0.01

Model Size B
(mm)		 C
(mm)		 F
(mm)		 H
(mm)		 L
(mm)		 Accuracy(mm)
Parallelism∥ Perpendicularity⊥
VE20 60X30 60 30 25 50 90 0.005/100 0.005
VE25 70X80 70 80 30 62 160 0.005/100 0.005
VE30 73X95 73 95 33 65 175 0.005/100 0.005

Model Size B
(mm)		 C
(mm)		 F
(mm)		 H
(mm)		 L
(mm)		 Accuracy(mm)
Parallelism Perpendicularity
QPT45 45x50 45 50 20 45 110 0.003/100 0.005
QPT60 60x70 60 70 25 50 140 0.003/100 0.005
QPT70 70x80 70 80 30 62 160 0.003/100 0.005

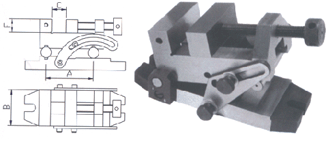

SINE PARALLEL VISE
Model Size B
(mm)		 C
(mm)		 F
(mm)		 A
(mm) 		Overall dimension(mm) Accuracy(mm)
Parallelism∥ Perpendicularity⊥ Roller centre distance
QZ80 60X80 60 50 23 80 170X84X83 0.008 0.005 ± 0.005
QZ120 80X120 80 70 30 120 213X106X93 0.010 0.005 ± 0.005
QZ150 100X150 100 90 36 150 242X122X109 0.010 0.005 ± 0.005

,

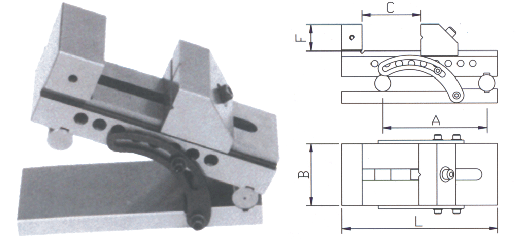

Model Size B
(mm)		 C
(mm)		 F
(mm)		 A
(mm) 		L
(mm) 		Accuracy(mm)
Parallelism∥ Perpendicularity⊥ Roller centre distance
ZVA20 50x65 50 65 30 100 140 0.005/100 0.005 ± 0.005
ZVA25 63x100 63 100 32 100 175 0.005/100 0.005 ± 0.005
ZVA30 76x127 76 120 32 127 190 0.005/100 0.005 ± 0.005
ZVA35 88x127 88 125 40 127 225 0.005/100 0.005 ± 0.005
ZVA40 98x150 98 125 45 150 245 0.01/100 0.005 ± 0.005

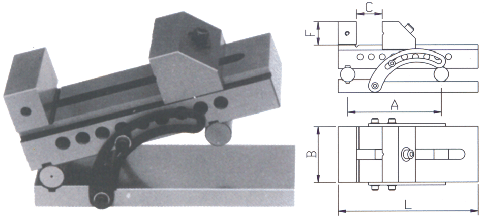

Model Size B
(mm)		 C
(mm)		 F
(mm)		 A
(mm) 		L
(mm) 		Accuracy(mm)
Parallelism∥ Perpendicularity⊥ Roller centre distance
FZVA20 50x100 50 65 30 100 140 0.005/100 0.005 ± 0.005
FZVA25 63x100 63 100 32 100 175 0.005/100 0.005 ± 0.005
FZVA30 76x127 76 100 32 127 190 0.005/100 0.005 ± 0.005
FZVA35 88x127 88 125 40 127 225 0.005/100 0.005 ± 0.005
FZVA40 98x150 98 125 45 150 235 0.005/100 0.005 ± 0.005

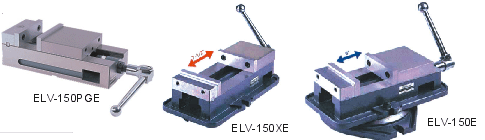

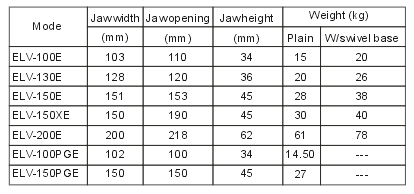

LOCKED TYPE MILLING MACHINE VISE
Outstanding clamping power and positive down force
on movable jaw through hardened spherical segment.
Removable hinged handle for fast locking.
Provides better clamping pressure.
Eliminates hammering.
Hardened and ground jaw plates.
Swivel handle.
360°swivel base is graduated in 1″ increments.

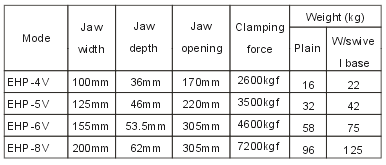

HYDRAULIC POWER MACHINE VISE



HYDRAULIC POWER MACHINE VISE

SINGLE DIRECTION MAGNETIC CHUCK
The Chuck provides holding powerful for flat workpiece as slope and arc-face workpiece . Owing to abandoning electricity, the plate and workpiece can’t be distorted by the variation of temperature caused by electric current.
Model Size Working angle Angle precision(with 30°) Magnetic force
DY150 150X150 45° 15” 8
DY210 210X140 45° 10” 8
DY300 300X150 45° 15” 8

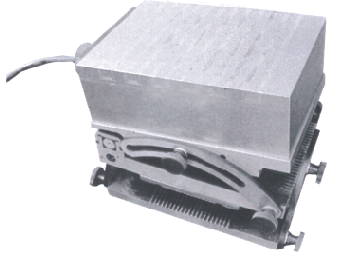

SINGLE DIRECTION ELECTROMAGNETIC CHUCK
Featurs
1. Effective angle 0 ~45°.
2. Angle precision guaranteed within 15`` when lifting angle within 30`
3. Roller Center Distance: 100+- 0.002mm.
4. Rectifier output:DC36V(unloading),DC26V(loading), 0.608A, 15.8W AC input: AC220V, 50HZ.
5. Effective Area: 176x126mm. Magnetic Force : 5kg/cm2
6. Nominal Dimension: 188x145x136mm for Rectifier
230x130x115mm for chuck

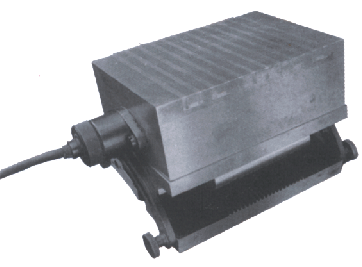

DOUBLE DIRECTION ELECTROMAGNETIC CHUCK
Features:
1. Double Effective angle 0° ~ 45°.
2. The first angle precision as same as the second angle precision guaranteed within 15`` when lifting angle within 30°.
3. Upper Roller Center Distance :150+-0.004mm .
4. Lower Roller Center Distance :100+-0.003mm
5. Rectifier output: DC36V(unloading) , DC26V(loading), 0.608A, 15.8W AC input: AC220V,50HZ
6. Effective Area: 176x126mm. Magnetic Force: 5kgf/cm2.
Nominal Dimension: 188x145x136mm for Rectifier
251.5x173x155mm for chuck

PRECISION PARALLELS SET
Model PT100 PT125

P208
（扫描）

 PT150

Length(mm) 100 125 150
HeightXWidth(mm) 2x5 2x10 2x15 2x20
3x6 3x11 3x16 3x21
4x7 4x12 4x17 4x22
5x8 5x13 5x18 5x23
6x9 6x14 6x19 6x24		 8x11 8x16 8x21 8x26 8x31 8x36
10x13 10x18 10x23 10x28 10x33 10x38
12x15 12x20 12x25 12x30 12x35 12x40
14x17 14x22 14x27 14x32 14x37 14x42


Model PK150
LengthXHeight(mm) 150x10
Width(mm) 14,16,18,20,22,24,26,28,30,32,35,40,45,50

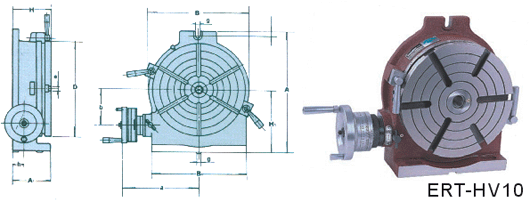

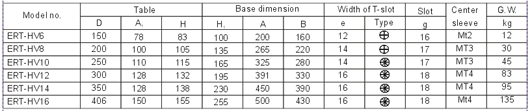

HORIZONTAL/VERTICAL PRECISION ROTARY TABLE

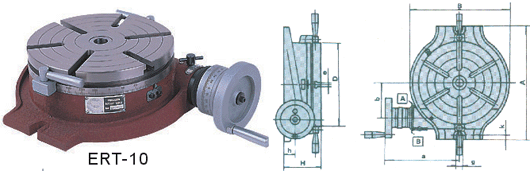

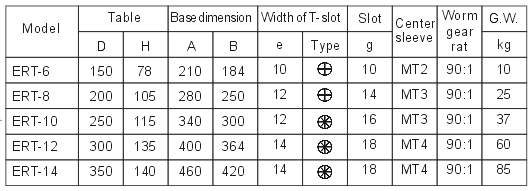

HORIZONTAL PRECISION ROTARY TABLE
